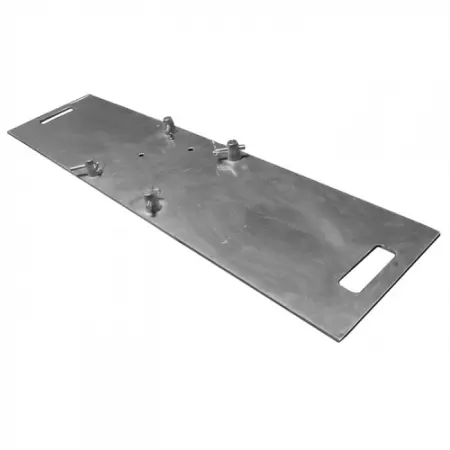

ProX XT-BP1248A 12" X 48" Aluminum Base Plate Fits Most Manufacturers W/Conical Connectors

Description
The ProX XT-BP1248A 12" x 48" Aluminum Base Plate is made with 8mm AWT6 6082 Aluminum Plate.

XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9,5kg per meter
Main Tube: 2in / 50mm
Wall Thickness:  .08in / 2mm
Braces: .75in / 20mm


Includes connecting hardware set.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.


Features
Manufactured in our Own Factory!
Material: 8mm EN-AWT6 6082 Aluminum
TUV Certified Manufacturing
Fits most manufacturers with F34 Conical Couplers

TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.


To Fit
Standard Size Square and Triangle Truss Configurations.  Fits Most Manufacturers W/Conical Connectors


Dimensions
48.00"L x 12.00"W x 1.00"H
Weight: 21.00 lbs

Shipping Dimensions
49.00"L x 13.00"D x 2.00"H
Shipping Weight: 23.00 lbs

ProX XT BP1248A (ProX XTBP1248A)
