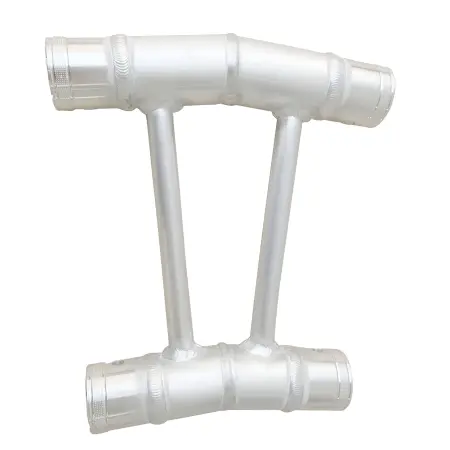

This ProX XT-F32-7D 7 Degree F32 Truss accessory is a two-way, fixed angle, corner connector that can be used singularly or in multiples to create angles and decorative designs not available with normal corner units while still maintaining excellent weight loading capabilities.  ProX Design Copyright © 2018

ProX Truss specializes in general-purpose aluminum lighting and stage trussing designed for live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications. Our products are built using 6082-T6 Aluminum Alloy compositions. This lightweight, corrosion-resistant aluminum has high tensile strength, giving you the support and stability you need. The ProX Truss Conical Coupling System allows for genderless trusses, providing a more precise lineup of chords and fastening points, while the conical shape of the couplers helps to maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly quick and easy with very few tools needed to complete setup.

ProX Trussing provides high strength with exceptional quality control and excellent pricing.

We own the factory, not generic trussing!
Built to exacting specifications
TUV Certified Welding & Processes
Compatible with most Conical Coupled F32 trussing
Includes tapered shear pins with clips and 2 conical couplings

Features
Fabricated by Certified TUV welders
Equipped with connecting hardware
Overall width-11 7/16" (290mm)
Outer diameter tubing-2" (50mm)
Diagonal bracing-3/4" (20mm)
Wall thickness-0.08" (2mm)
Aluminum Alloy EN AW-6082 T6
F32 Aluminum Truss
Aluminum Brush Finish

To Fit
ProX F32 (and other brands) Truss


Shipping Dimensions
8.00"L x 8.00"D x 12.00"H
Shipping Weight: 4.00 lbs

Suggested Shipping Method: Parcel

UPC
019372410911

Pro X XT-F327D (ProX 7 Degree F32 Truss Corner)
