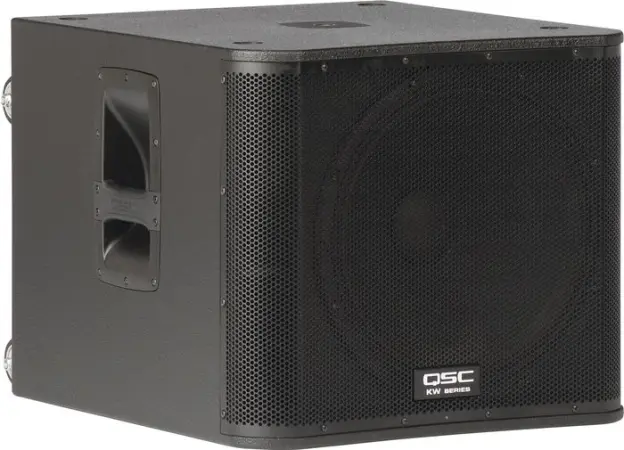

QSC KW181 Subwoofer
Building on the success of our K Series, the KW Series represents the next evolutionary step in wood enclosure loudspeakers. Our system engineers have created the KW Series to feature all the groundbreaking electronic attributes of our popular K Series while at the same time designing a product that is both smaller and significantly lighter than previous wood enclosure models.
SPECIFICATIONS | QSC KW181 Subwoofer |
---|---|
Configuration | 18" QSC powered subwoofer |
Transducer  |
18" cone transducer |
Frequency Response (-6 dB) | 43 Hz - 97 kHz |
Frequency Range (-10 dB) | 39 Hz - 145 Hz |
Maximum SPL (1 meter) | 132 dB peak |
Amplifiers | |
Power Output | 1000 W Class D continuous |
Input Impedance (ohms) | XLR / ¼": 40k balanced / 20k unbalanced |
Controls | Power, Gain, LF Mode (Normal/DEEPâ„¢), Polarity (Normal/Reverse), Front LED (On/Off/Limit) |
Indicators | Power, Signal, Standby, Limit |
Connectors | Dual balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out, Remote gain control, Locking IEC power connector |
Cooling | On demand, 50 mm variable speed fan |
Amplifier Protection | Thermal limiting, output overcurrent, overtemperature muting, GuardRailâ„¢ |
Transducer Protection | Thermal limiting, excursion limiting |
AC Power Input | Universal power supply 100 - 240 VAC, 50 - 60 Hz |
AC Power Consumption (1/8 Power) |
100 VAC, 2.3 A 120 VAC, 2.01 A 230 VAC, 1.13 A |
Enclosure | |
Material | 15 mm painted birch plywood |
Finish | Black textured paint |
Grille | Black powder coated 16 gauge steel |
Dimensions (HWD) | 20.1" x 23.4" x 29.9" with
casters 510 mm x 595 mm x 761 mm with casters |
Weight (Net) | 83 lb (37.6 kg) |
Available Accessories | KW181 COVER |
Â
High Output: Like K Series, each of the four KW Series models features a QSC designed, 1000 watt (2 x 500) Class D power module. And continuing in the K Series tradition, every model is fitted with the identical high-output 1.75" HF device (full-range models) and woofers of the same high quality design, regardless of speaker size.
Defined Coverage Area: Directivity Matched Transition (DMTâ„¢) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones.
DSP: Extensive signal processing is employed
throughout, providing levels of sonic clarity and total output that defy all
expectations for a product in this category:Â
Intrinsic Correctionâ„¢, first featured in our high-end line array products maps
65-75 spatially-averaged measurements to IIR and FIR filters that actively
adjust time, frequency and amplitude response to a maximally flat bandpass
target. The result is a speaker that behaves equally well across the entire
sound field.
DEEPâ„¢ and excursion limiting allow for extended low-frequency response by
actively managing low-frequency transients without degradation of the underlying
signal or adjacent frequencies.
GuardRailâ„¢ protection, first introduced on our GX Series amplifiers protects
both the amplifier module and your performance from unnatural and destructive
clipping.
Connectivity: KW Series features a four-position mic / line gain switch that
allows for connection of a wide variety of devices. Combo XLR and 1/4" TRS
inputs accept both mic and line level input while a set of RCA phono inputs
(except KW181) allow additional connectivity to portable MP3 players, CD players
and line-level mixers. Up to three audio sources can be mixed internally and
summed to a balanced output for "daisy-chaining" of multiple units. Separate
direct outputs are also provided on each channel for additional output
flexibility.
Control: On-board switches provide preset EQ settings. The HF setting (full-range models) can be set to VOCAL BOOST for additional presence in the critical mid-frequency area or FLAT for accurate reproduction of the incoming signal. The LF switch can be set to NORM, DEEPâ„¢ for additional bass extension, or EXT SUB (full-range models) for use with an external QSC powered subwoofer. The rear panel LED switch can be set to POWER, illuminating the front-mounted LED when the unit is powered on, OFF for applications where it is not desirable to illuminate the front LED, or LIMIT which indicates to the system operator that the clip limiter circuit has been engaged during operation.
Tilt-Directâ„¢: The KW122 and KW152 feature a unique Tilt-Directâ„¢ pole cup mounting system. A simple turn of the dial engages a 7.5 degree downward tilt of the speaker allowing acoustic energy to be kept on the audience and off reflective surfaces for applications where maximum coverage from a high-positioned speaker is desired.
Remote Gain: Remote gain control capability is offered via a potentiometer (not included) connected to the on-board Phoenix-Style connector. In an installed application, multiple KW Series speakers can be "daisy-chained" for total gain control from a single remote pot. Auto-standby mode is engaged after 5 minutes of inactivity.
Premium-grade materials: KW Series is designed to withstand the rigors of professional use. Advanced construction processes, premium-grade Baltic birch cabinetry, ergonomic, cast aluminum handles, low-noise casters (KW181) and a highly protective steel grille provide for ease of transport and long term durability. Integrated M10 suspension points allow for flown applications with a KW M10 KIT (sold separately) and a threaded pole receptacle (KW181) provides for a positive, wobble free connection to a threaded speaker pole (included).
