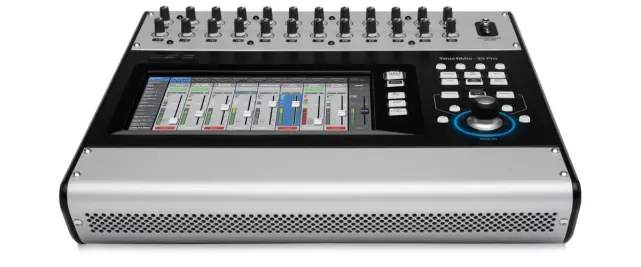

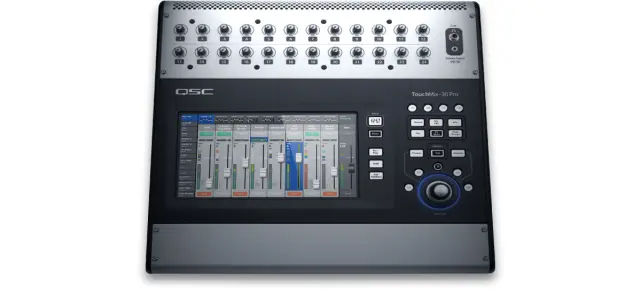

QSC TouchMix-30 Pro

$2,399.99 new
Warranty
Description Q&A: 0 Reviews: 0 Financing
or $218/mo $0 Shipping, $0 Tax



Backordered - Call for ETA Low Price Guarantee



or $ 218/mo $0 Shipping, $0 Tax


User Reviews

Read all reviews
Product Description
The TouchMix-30 Pro 32-Channel Compact Digital Mixer with Touchscreen from QSC is a 32-input digital mixer featuring 24 built-in mic/line preamplifiers, six stereo 1/4" inputs, a stereo 1/8" input, all of which can be controlled by its integrated touchscreen or wirelessly via an iOS or Android device connected to the same wireless network. The mixer features a DSP-based 4-band parametric EQ with variable high- and low-pass filters, a gate, and compressor on each input channel. The TM-30's DSP also provides reverb, echo, delay, and chorus effects in addition to assignable pitch correction.

All of the outputs feature 1/3 octave graphic equalizers, 6-band parametric EQ, plus limiters, delay, and 12-band notch filters. Additionally, eight sub-groups are provided, each with 6-band full parametric EQ, variable high- and low-pass filters and limiters. Two full-featured Real Time Analyzers (RTA) help identify problem frequencies, while the integrated Wizards provide anti-feedback, room tuning, gain, and effects. The mixer is also capable of 32 channels of bidirectional multitrack recording with sampling frequencies up to 48 kHz to an optional external USB hard drive.

Features:
32 inputs (24 mic/line, 6 line, 1 stereo USB playback)
24 Class-A microphone preamps deliver pristine, studio-quality audio
10" (diagonal) color, multi-touch capacitive touchscreen graphical user interface combined with hardware controls for fast and intuitive operation
Intuitive Work Flow: Simple for the novice; fast for the professional
Over 120 live instrument, microphone and other audio-source presets created in live environments provide mix-ready channel settings
Anti-Feedback; Room Tuning; Gain and Effects wizards
Comprehensive, on-board Info System guides and assists users
4-band full Parametric EQ, variable high- and low-pass filters on all input channels
Gate, compressor and delay on all input channels
All outputs feature 1/3-octave graphic equalization and 6-band parametric EQ plus limiters, delay and 12-band notch filters
Eight sub-groups with 6-band full parametric EQ, variable high- and low-pass filters and limiter. May be linked for stereo
8 DCA groups; 8 mute groups; 8 subgroups
Two built-in Real Time Analyzers (RTA) provide instantaneous display of channel tonal balance and room response
Six stereo effects processors plus pitch-correct offer studio-grade signal enhancements, without sacrificing Auxes or additional channels
Touch-and-route Patch Matrix for easy “multing” of inputs to mixer channels
Copy and paste function easily duplicates mixes, channels, EQ, dynamics and more
Monitor Mixes: 14 mono mixes, may be paired for stereo. Two pairs of the Auxes can drive wired in-ear monitors (IEM) directly
Records and plays back multitrack wave files (32 tracks) using external hard drive. Capable of recording all input channels plus a user-selected stereo output pair
Interfaces with most DAW software running on Mac computers
MP3 playback direct from USB
Remote control via mobile devices over Wi-Fi
Rackmountable with optional accessory kit

Specifications:
Mixer
Number of Analog Input Channels 32
Groups 8 x DCA Group
8 x Mute Group
8 x Subgroup
Presets 99 x Scene
120 x Preset (Factory)
99 x Preset (User)
Display 10" / 254 mm Touchscreen
Display Resolution/Color Main Display:
1024 x 600 / Color
Signal Processing
Gain/Trim Range Mic:
75 dB
Dynamic Processing Input Channels:
Compressor, Gate
Buses, Master:
Limiter
EQ Input Channels:
4-Band Parametric/Shelving
Outputs:
Graphic
6-Band Parametric
Subgroups:
6-Band Parametric
Filters Input Channels:
High-Pass , 24 dB/Octave
Low-Pass , 24 dB/Octave
Outputs:
High-Pass
Low-Pass
12 x Notch
Buses:
High-Pass
Low-Pass
Solo/Mute Solo-in-Place per Input Channel
Channel Output/Source Monitoring AFL, PFL
Internal Effects Reverb
Echo (Type Unspecified)
Delay
Chorus
Pitch Shift
1 x Pitch Correct
Real Time Analyzer 2 x 1/3 Octave
Audio Delay Adjustable Up to 100 ms
Digital Audio
Sample Rates 44.1 / 48 kHz
Performance
Frequency Response 20 Hz to 20 kHz ±0.5 dB
Max Input Level XLR Mic/Line Input:
+16 dB
1/4" TRS Mic/Line Input:
+26 dB
1/4" TRS Line Input:
+24 dBu
1/8" / 3.5 mm Input:
0 dBV
Output Level Line Output:
+22 dBu (Max)
Analog Dynamic Range 105 dB
Crosstalk -80 dB
EIN -126 dBu
Noise Floor -86 dBu
SNR -94 dB
THD

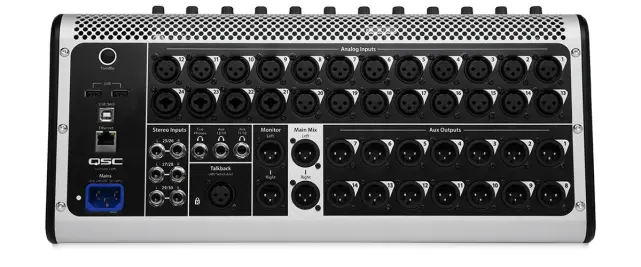

Connectivity
Analog Inputs 1 x XLR Talkback Input
20 x XLR Mic Input
4 x Combo XLR-1/4" TRS Mic/Line Input
6 x 1/4" TRS Balanced Line Input
1 x 1/8" / 3.5 mm TRS Input
Analog Outputs 2 x XLR Line/Main Output
14 x XLR Aux/Line Output
2 x 1/4" TRS Stereo Aux/Monitor Output
1 x 1/4" TRS Headphone Output
2 x XLR Line/Monitor Output
Phantom Power +48 V (Selectable on Individual Inputs)
Digital I/O 1 x RJ45 (Wi-Fi Router)
USB 2 x USB Type-A (USB 3.0, Control, External Memory, MIDI, Service, Wi-Fi)
1 x USB Type-B (Host Connection)
Wireless Connectivity Wi-Fi
Recording
Max Multitrack Recording 32 Tracks
File Format Support Playback: MP3
Compatibility
Mobile Device Compatibility iPad
iPhone
Android Tablet
Android Smartphone
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 85 W
Physical
Certifications CE, FCC, RoHS, UL, as per Manufacturer
Dimensions 7.5 x 16.9 x 18.1" / 19.1 x 42.9 x 46 cm
Weight 17.5 lb / 7.9 kg

QSC TouchMix 30 Pro   ( QSC TouchMix30Pro )
