RCF ART 312

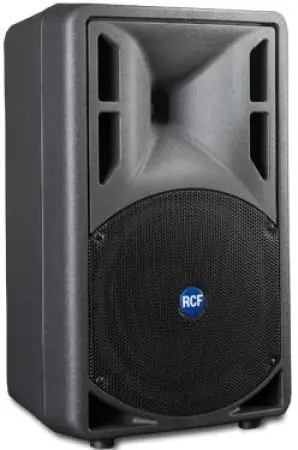

RCF ART 312 (RCF ART312)

The RCF ART 312 is the optimum choice for live sound situations where an exceptional full range, outstanding bass reproduction and accurate high frequency delivery is required. The ART 312 is also suitable for monitoring applications.

- 300 watt power handling.
- 127 dB max SPL.
- Wide dispersion, 90 x 60 low distortion, constant directivity horn.
- 12" high power woofer, 64mm edge wound aluminium coil.
- 1" neodymium, titanium dome, high frequency driver.
- LICC low impedance compensated crossover, electronic driver protection.
- 2 x NL4 Speakon® connector.
- 2 side handles and 1 ergonomic top handle for easy transportation and positioning.
- Four M10 fly points and pole mount adaptor.

RCF ART 312 is a wide dispersion, 2 way sound reinforcement speaker. It integrates a high power LICC high level crossover network and RCF low distortion, high power transducers. The result is a compact, high power accurate system, unique in its class for clarity and low distortion.

The new 12" inch woofer is the result of thelatest refinement in years of RCF experience in compact 2 way speakers, resulting in a fast and accurate reproduction of the midbass frequency range and controlled deep bass.

The compression driver uses a new 1.5" titanium dome in front of a low compression, optimised geometry, radial phase plug. This innovative design is powered from a high flux neodymium magnet and offers a very open and natural midrange sound and extreme precision in high frequency reproduction.

Our LICC low impedance compensated crossover network featuring lower (than conventional) induction value in series with the woofer offer delay reduction, reduced phase shift and superior transient response. The compression driver is protected by a fast dynamic electronic circuit.

The input section presents 2 x NL4 Speakon® connectors offering an easy loop-through link. All components are housed in a strong, lightweight, polypropylene composite enclosure. Woofer and compression driver throat are protected from a strong, powder coated, metal grille. The cabinet features four M10 threaded fly points, a 35 mm pole mount adaptor two side handles and a ergonomic top handle.
