RCF ART322A (B-Stock)
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued

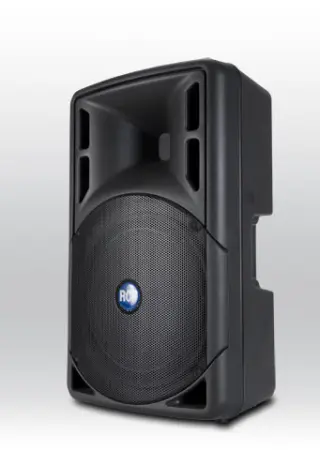

ART 322-A
ACTIVE TWO-WAY SPEAKER
ART 322-A offers an extremely linear response and precise, deep low frequency
control thanks to the perfect blend of the fast and high effi ciency
transducers.
It is the ideal speaker for main front of house PA and high power monitoring and
it is the best solution where the power of a 2” compression driver is required
for longer throw applications in larger venues.
FEATURES
400 Watt bi-amplification
128 dB max spl
90 x 60, Wide dispersion constant directivity horn
12" woofer, high power 3" voice coil
2" HF driver, titanium dome, neodymium 2.5" voice coil
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:45 Hz ÷ 20 kHz
Max SPL:128 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:2" neo, 2.5" v.c.
Woofer:12", 3" v.c.
INPUT/OUTPUT SECTION
Input signal:bal / unbal
Input connectors:xlr / jack
Output connectors:xlr
Input sensitivity:0 dBu
Mic. Input Sensitivity:-40
PROCESSOR SECTION
Crossover frequencies:1200 Hz
Protections:DC / short cir.
Limiter:Fast limiter
Controls:Volume / EQ remote
AMPLIFIER SPECIFICATIONS
Total power:400 W
High frequencies:50 W
Low frequencies:350 W
Cooling:Convection
Connections:VDE conncector in
CABINET
Cabinet Material:Composite PP
Hardware:4xM10 flying p.
Handles:2 side, 1 top
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:680 / 26.67 mm/inch
Width:405 / 15.94 mm/inch
Depth:345 / 13.58 mm/inch
Net Weight:23 / 50.7 kg/lbs
APPLICATIONS
• Live sound
• Main FOH for small venues
• Playback and stage monitoring
• Installations
• Corporate events
• AV presentations
