This product has been discontinued by the manufacturer. Please contact us to find a replacement.

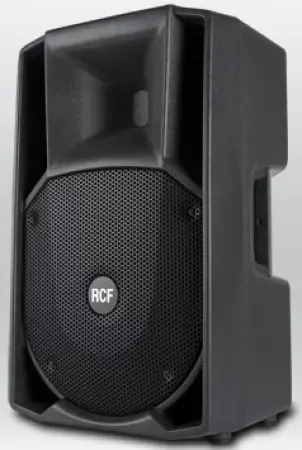

RCF ART 722-A MK2 (RCF ART
Is the venue for the show bigger than you’ve expected?
This is not a problem with the ART 722-A.
Thanks to its wide dispersion 90° x 60° low distortion, constant directivity horn and its linear and precise deep frequency control, it is the perfect solution when you need enough volume power for longer throw application in larger venues.
FEATURES:
1500 W Peak, 750 Watt RMS digital amplifier
130 dB max spl
90 x 60, Wide dispersion constant directivity horn
12" woofer, high power 3" voice coil
2" HF neodymium driver, titanium dome, 2.5" voice coil
PFC power factor correction
DSP Processing
ACOUSTICAL SPECIFICATIONS:
Frequency Response -3 dB:45 Hz ÷ 20000 Hz
Max SPL:130 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:2" neo, 2.5" v.c.
Woofer:12", 3" v.c.
INPUT/OUTPUT SECTION:
Input signal:Bal/unbal
Input connectors:Combo xlr-jack
Output connectors:xlr
Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION:
Crossover frequencies:1200 Hz
Protections:Thermal, rms
Limiter:Soft limiter
Controls:Volume, EQ shape
AMPLIFIER SPECIFICATIONS:
Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK
Total power:750 W RMS
High frequencies:250 W RMS
Low frequencies:500 W RMS
Cooling:Convection / forced
Connections:VDE connector in
CABINET:
Cabinet Material:Composite PP
Hardware:2xM10 flying p.
Handles:2 side, 1 top
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS:
Height:637 / 25.07 mm/inch
Width:384 / 15.11 mm/inch
Depth:363 / 14.29 mm/inch
Net Weight:21.2 / 46.73 kg/lbs
