RCF C3108-96

$885.00 new
CALL or VIP REGISTRATION (free) new
Warranty



Available - Ships in 1-2 days Low Price Guarantee



or $80/mo Free Shipping, No Tax (except NJ)


User Reviews

Please log-in to write your review

read all reviews
Product Description

RCF C3108-96 (RCF C 3108 96)

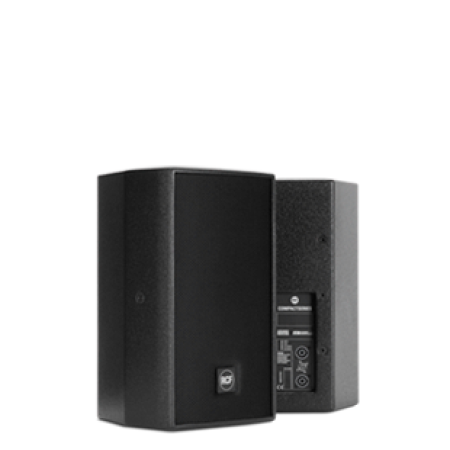

The C3108 is a full range extremely versatile wide-dispersion, low profile, two-way loudspeaker system for near field applications.

Its compact size makes it ideal for low visibility side wall mounting.
The high-frequency section is a constant directivity horn loaded to a 1” compression driver with a 1.5” diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is an 8” woofer with a 2” voice coil.

FEATURES

90°x 60° CMD (Constant Matching Design) constant directivity horn
Rotatable Horn System for horizontal cabinet mounting applications
HF driver AMCDP (Active Mosfet Compression Driver Protection)
LICC (Low Impedance Compensated Crossover) network
8 Suspension points
Omnimount™ 75 Plate fixing positions on rear of cabinet
35 mm standard internal pole mount

ACOUSTICAL SPECIFICATIONS

Frequency Response -10 dB:70 Hz ÷ 20000 Hz
Max SPL @ 1m:126 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Directivity index; Q:11
System Sensitivity:95 dB
Nominal Impedance:8 Ω
Power Handling:300 W
Peak Power Handling:1200 W
Recommended Amplifier:600 W
Protections:Dynamic
Crossover frequencies:2000 Hz

TRANSDUCERS

Compression Driver:1" HFdriver, 1.5" voice coil
Nominal Impedance:8 Ω
Input Power Rating:25 W AES
Sensitivity:106 dB
Woofer:8" woofer, 2.0" voice coil
Nominal Impedance:8 Ω
Input Power Rating:200 W AES
Sensitivity:94 dB

INPUT SECTION

Input connector:Speakon NL4
Output connector:Speakon NL4

CABINET

Cabinet Material:12 mm birch plywood construction
Hardware:6 x M8 back, 2 x M10 side
Pole Mount/Cap:1 top, 1 bottom
Grille:custom perforated steel grille, epoxy powder coated, covered with polyurethane perforated cloth
Colour:Black

PHYSICAL SPECIFICATIONS

Height:427 / 16.81 mm/inch
Width:242 / 9.52 mm/inch
Depth:263 / 10.35 mm/inch
Net Weight:12.2 / 29.9 kg/lbs
