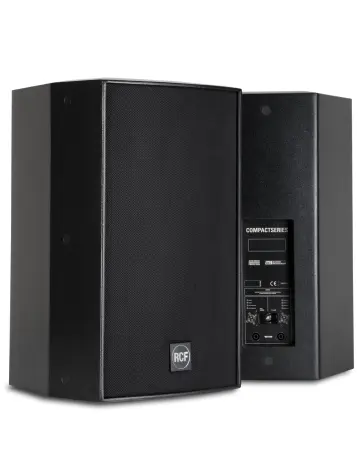

RCF C5212-94 (RCF C 5212 94)
The C5212-94 is a full range extremely narrow dispersion two-way loudspeaker system for medium throw applications.
The high-frequency section is a constant directivity horn loaded to a 2” compression driver with a 2.5” diaphragm assembly for smooth, wide dispersion.
The 90° x 40° horn design offers higher sensitivity for longer distance applications.
The low-frequency transducer is a 12” woofer with a 3” voice coil.
The crossover is easily bypassed for bi-amp via a recessed changeover switch.
FEATURES
90° x 40° CMD (Coverage Matching Design) constant directivity horn
2" compression driver with 2.5" diaphragm assembly
12" woofer with 3" voice coil
Dual-function design: built in passive crossover or external bi-amp
Rotatable Horn System for horizontal cabinet mounting applications
HF driver AMCDP (Active Mosfet Compression Driver Protection)
LICC (Low Impedance Compensated Crossover) network
ACOUSTICAL SPECIFICATIONS
Frequency Response -10 dB:54 Hz ÷ 20000 Hz
Max SPL @ 1m:132 dB
Horizontal coverage angle:90°
Vertical coverage angle:40°
Directivity index; Q:13
System Sensitivity:99 dB
Nominal Impedance:8 Ω
Power Handling:500 W
Peak Power Handling:2000 W
Recommended Amplifier:1000 W
Protections:Dynamic
Crossover frequencies:1200 Hz
TRANSDUCERS
Compression Driver:2"HF driver, 2.5" voice coil
Nominal Impedance:8 Ω
Input Power Rating:100 W AES
Sensitivity:111 dB
Woofer:12" woofer, 3" voice coil
Nominal Impedance:8 Ω
Input Power Rating:400 W AES
Sensitivity:98 dB
INPUT SECTION
Input connector:Speakon NL4 - Full range or Bi-Amp
Output connector:Speakon NL4
CABINET
Cabinet Material:15 mm birch plywood construction
Hardware:14 x M10 inserts
Pole Mount/Cap:1 top, 1 bottom
Grille:custom perforated steel grille, epoxy powder coated, covered with polyurethane perforated cloth
Color:Black
PHYSICAL SPECIFICATIONS
Height:630/24.8 mm/inch
Width:360 / 14.17 mm/inch
Depth:390 / 15.35 mm/inch
Net Weight:29 / 63.93 kg/lbs
