RCF C5215-99
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

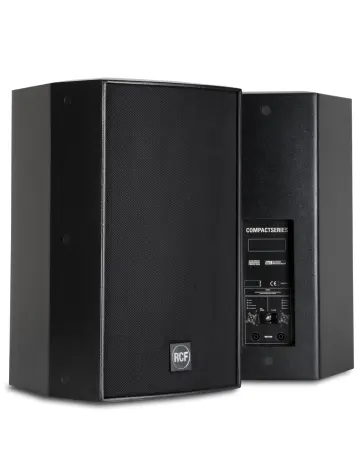

RCF C5215-99 (RCF C-5215 99)
TWO-WAY PASSIVE SPEAKER

The C5215-99 is a full range extremely versatile controlled narrow dispersion two-way loudspeaker system for medium throw applications.

The high-frequency section is a constant directivity horn loaded to a 2” compression driver with a 2.5” diaphragm assembly for smooth, controlled dispersion.
The 90° x 90° horn design offers higher sensitivity for longer distance applications. The low-frequency transducer is a 15” woofer with a 3” voice coil.
The crossover is easily bypassed for bi-amp via a recessed changeover switch.

FEATURES
90° x 90° CMD (Coverage Matching Design) constant directivity horn
2" compression driver with 2,5" diaphragm assembly
15" woofer with 3" voice coil
Dual-function design: built in passive crossover or external bi-amp
Rotatable Horn System for horizontal cabinet mounting applications
HF driver AMCDP (Active Mosfet Compression Driver Protection)
LICC (Low Impedance Compensated Crossover) network
14 Suspension points (M10)
35 mm standard internal pole mount
ACOUSTICAL SPECIFICATIONS
Frequency Response -10 dB:48 Hz ÷ 20000 Hz
Max SPL @ 1m:133 dB
Horizontal coverage angle:90°
Vertical coverage angle:90°
Directivity index; Q:11
System Sensitivity:100 dB
Nominal Impedance:8 Ω
Power Handling:500 W
Peak Power Handling:2000 W
Recommended Amplifier:1000 W
Protections:Dynamic
Crossover frequencies:1200 Hz

TRANSDUCERS
Compression Driver:2" HF driver, 2.5" voice coil
Nominal Impedance:8 Ω
Input Power Rating:100 W AES
Sensitivity:111 dB
Woofer:15" woofer, 3" voice coil
Nominal Impedance:8 Ω
Input Power Rating:400 W AES
Sensitivity:99 dB
INPUT SECTION
Input connector:Speakon NL4 - Full range or Bi-Amp
Output connector:Speakon NL4

CABINET
Cabinet Material:15 mm birch plywood construction
Hardware:14 x M10 inserts
Pole Mount/Cap:1 top, 1 bottom
Grille:custom perforated steel grille, epoxy powder coated, covered with polyurethane perforated cloth
Colour:Black

PHYSICAL SPECIFICATIONS
Height:695 / 27.36 mm/inch
Width:430 / 16.93 mm/inch
Depth:460 / 18.11 mm/inch
Net Weight:34.8 / 76.72 kg/lbs
