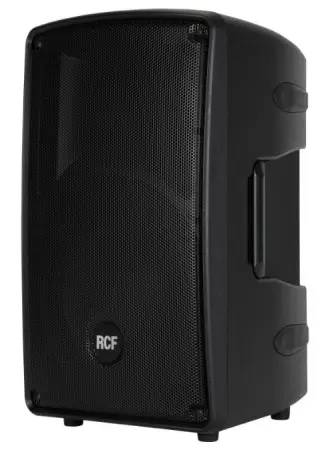

RCF cares about your sound. The new D-Line MK4 speakers boosts the performance with a series of brand new transducers, improves the sound quality with the revolutionary FiRPHASE processing and renew the grille design to exalt the professional look. The vocals are natural, the sound is clear at long distances, the SPL power is stable at very high levels. The concept of the HD-Line derives from the touring industry, bringing in an elegant and compact cabinet all the experience of RCF professional sound with the maximum reliability and strength for the intensive use on the road.
Connect your microphone, your device or your mixer to the speaker and turn up the volume: real plug&play. Perfect as a main front of house in small PA systems, high powered floor monitoring and unobtrusive fixed installation.
Features:
1400 watt 2-way peak power
130 dB max SPL
Digital bi-amplification, SMPS
DSP sound processing
90° x 60°, wide dispersion constant directivity horn
12" woofer, high power, 2.5" voice coil
1.0" HF driver, titanium dome, neodymium 1.5" voice coil
FiRPHASE processing
Specifications:
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz
MAX SPL @ 1M:
130 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1.0'', 1.5'' v.c
WOOFER:
12'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XRL, Jack
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
1800 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection
CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite
HARDWARE:
1 x M10 top, 1 x M10 bottom, 3 x M6 bottom
HANDLES:
1 Top, 2 Side
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
647 mm / 25.47 inches
WIDTH:
380 mm / 14.96 inches
DEPTH:
380 mm / 14.96 inches
WEIGHT:
18.3 kg / 40.34 lbs
Shipping informations
PACKAGE HEIGHT:
760 mm / 29.92 inches
PACKAGE WIDTH:
500 mm / 19.69 inches
PACKAGE DEPTH:
500 mm / 19.69 inches
PACKAGE WEIGHT:
21.4 kg / 47.18 lbs
