RCF HDL 6-A | 1400W Compact Active Line Array Module
The RCF HDL 6-A is a high-performance, lightweight active line array module ideal for touring and installed sound applications. This 1400W system features two 6.0" neodymium woofers and a 1.7" neodymium compression driver, delivering clear, powerful sound with a maximum SPL of 131 dB. The HDL 6-A is designed for quick and easy setup, making it an excellent choice for professionals who need reliable, high-quality sound in a compact format.
HDL 6-A Competitive Differences
- 1400W Two-Way Amplification for Powerful Sound
- 131 dB Max SPL
- FiRPHASE Processing for Optimal Sound Clarity
- Symmetrical Design for Consistent Coverage
- Ultra-Lightweight Construction with Neodymium Drivers
- Custom-Designed Waveguide for Precise Coverage
Full Product Description
The RCF HDL 6-A is engineered for superior performance in both portable and fixed installations. Its 1400W Class-D amplifier powers two 6.0" neodymium woofers and a 1.7" voice coil compression driver, ensuring excellent vocal clarity and bass reproduction. The system incorporates advanced DSP processing, including FiRPHASE technology, which optimizes the sound for maximum clarity and definition. With its compact, lightweight design, the HDL 6-A is easy to transport and set up, making it perfect for live events, concerts, and professional audio installations.
Features
- 1400W Two-Way Amplification
- 131 dB Max SPL
- Frequency Response: 65 Hz – 20 kHz
- 1.7" Neodymium Compression Driver
- 2 x 6.0" Neodymium Woofers
- 48 kHz, 32-bit DSP Processing
- Symmetrical Design for Constant Coverage
- FiRPHASE Processing for Enhanced Sound Clarity
- Lightweight, Compact Design

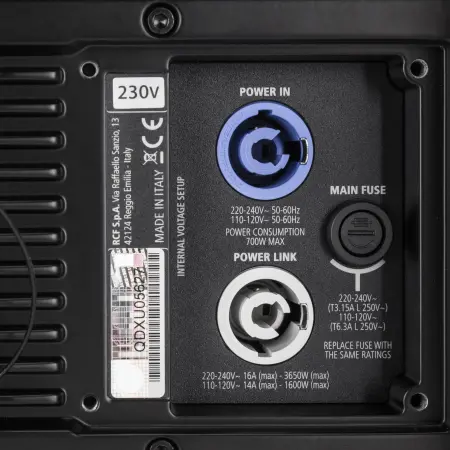

- Powercon IN/OUT Connections
Specifications
- Frequency Response: 65 Hz – 20 kHz
- Max SPL @ 1m: 131 dB
- Horizontal Coverage: 100°
- Vertical Coverage: 10°
- Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
- Woofer: 2 x 6.0'' neo, 2.0'' v.c

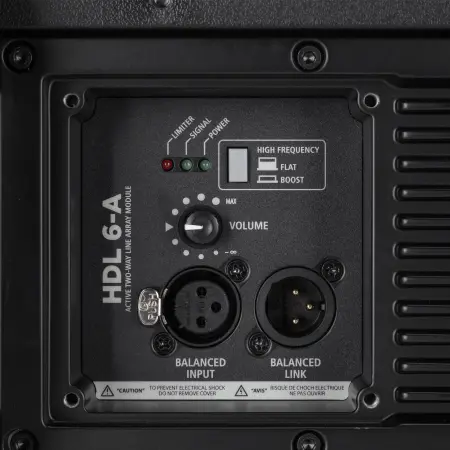

- Input Connectors: XLR
- Output Connectors: XLR
- Power Supply: 1400W Peak, 700W RMS
- Cooling: Convection
- Color: Black, White
- Dimensions (H x W x D): 9.33" x 18.5" x 14.84"
- Weight: 25.57 lbs
RCF HDL6-A
(RCF HDL6A)
