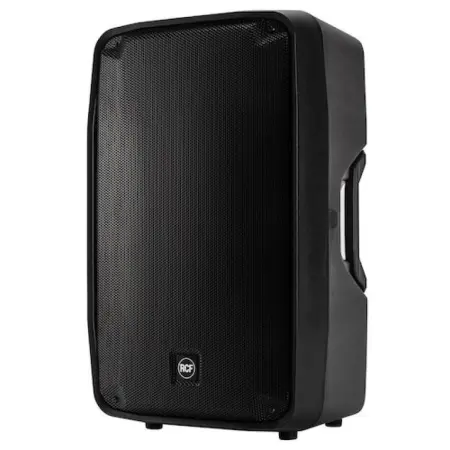

The HDM 45-A speaker boosts the performance with a top-quality two channel amplifier, RDNet networked management, RCF precision transducers, the FiRPHASE processing, and a rugged cabinet. While being one of the most powerful speakers in composite material in its category, it delivers clear, detailed and smooth sound from low to very high levels, with low distortion and fast transient response. The HDM concept is inspired by the touring industry, packing in an elegant and lightweight cabinet the maximum reliability and strength for intensive use on the road. Perfect as a main front of house speaker in PA systems, high-powered floor monitor, or unobtrusive infill system when combined with the RCF HDL System speakers.
Features:
133 dB Max SPL
2200 Watts two-way power
Innovative DSP Processing with FiRPHASE
1.5” Titanium Compression Driver, 4.0” v.c. Neodimium
15” Neodimium Woofer, 3.5” v.c.
650 Hz crossover point for perfect vocal reproduction
90°x60°, wide dispersion constant directivity horn
RDNet compatible
Specifications:
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz
MAX SPL @ 1M:
133 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1.5'' neo, 4.0'' v.c
WOOFER:
15'' neo, 3.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
-2 dBu/+4 dBu
MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
650 Hz
PROTECTIONS:
Thermal, HF
LIMITER:
Fast Limiter
CONTROLS:
proces., 8 sel. presets
RDNET:
Yes
Power section
TOTAL POWER:
2200 W Peak, 1100 W RMS
HIGH FREQUENCIES:
600 W Peak, 300 W RMS
LOW FREQUENCIES:
1600 W Peak, 800 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
EN54-16 CERTIFIED:
Yes
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite
HARDWARE:
1 x M10 top, 1 x M10 bottom, 2 x M10 side
HANDLES:
1 Top, 2 Side
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
714 mm / 28.11 inches
WIDTH:
442 mm / 17.4 inches
DEPTH:
397 mm / 15.63 inches
WEIGHT:
22 kg / 48.5 lbs
Shipping information:
PACKAGE HEIGHT:
750 mm / 29.53 inches
PACKAGE WIDTH:
440 mm / 17.32 inches
PACKAGE DEPTH:
480 mm / 18.9 inches
PACKAGE WEIGHT:
24.5 kg / 54.01 lbs
