This product has been discontinued by the manufacturer. Please contact us to find a replacement.

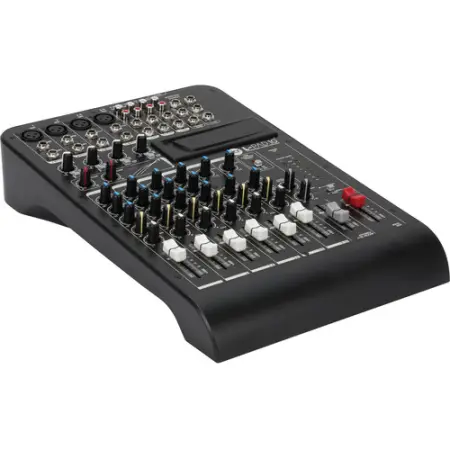

RCF L-PAD 10C (RCF Livepad 10C)
10-Channel Compact Mixer with Expansion Slot and 2 Built-In Compressors
With four transparent sound mic inputs, four stereo line inputs and the 2tk in/ out, RCF's L-PAD 10C compact mixer is the ideal tool for duo/trio gigs, speech, background music diffusion, parties and all activities requiring several stereo inputs to be mixed. Two single-control compressors on mic channels help to handle even the more dynamic complex signals. The super versatile L-PAD slot permits the optional L-PAD MP3 Player, MP3 Player/Recorder or Blutetooth Connection cards to be inserted for even more flexible use. Thanks to the accurate Italian design the RCF L-PAD 10C is easy to grab, transport and handle in all live situations. It is possible to install the RCF L-PAD 10C on a mic stand thanks to the dedicated optional accessory or in a rack using the dedicated optional rack ears. Order the RCF Livepad 10C online today.
RCF L-Pad 10C (RCF Livepad 10C) Features:
Aesthetic design, enabling the mixer to be grabbed in an easy and safe way. The front panel presents an accurate design and useful arm-rest
Long-life ultra reliable 45mm faders. All the faders passed a long life use test including several tens of thousands of complete cycles.
Smooth-action, single-control dynamic compressors on channels 1 & 2
Super versatile L-PAD Slot: One of the intelligent L-PAD option cards (sold seperately) may be installed, the MP3 Player, MP3 Player/Recorder, or the Bluetooth Connection cards. These optional cards expand your L-PAD mixer usability adding an internal music player, a super-intuitive recorder or allow you to connect any Bluetooth device to reproduce your favorite playlist
4 mono inputs with 3-band EQ
4 stereo inputs with 2-band EQ
1 AUX Send
RCF L-Pad 10C (RCF Livepad 10C) Specifications:
Mono Channels:
Microphone Input: XLR Balanced
Frequency Response: 10 Hz - 55 kHz, +/- 3dB
Distortion (THD+N): < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
Gain Range: 0 dB to -50 dB
Max. Input: +15 dB
Low Cut: 75 Hz
SNR: < -100 dBr A-weighted
Phantom Power: +48V with switch control
Line Input: 1/4" TRS Balanced
Frequency Response: 10 Hz - 55 kHz, +/- 3dB
Distortion (THD+N): < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
Sensitivity Range: +15 dBu to -35 dBu
SNR: < -100 dBr A-weighted
Stereo Input Channels:
Microphone Input: XLR Balanced
Low Cut: 75 Hz
Line Input: 1/4" TRS or TRS/RCA unbalanced
Frequency Response: 10 Hz - 55 kHz, +/- 3dB
Distortion (THD+N): < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
Sensitivity Range: +15 dBu to -35 dBu
SNR: < -100 dBr A-weighted
