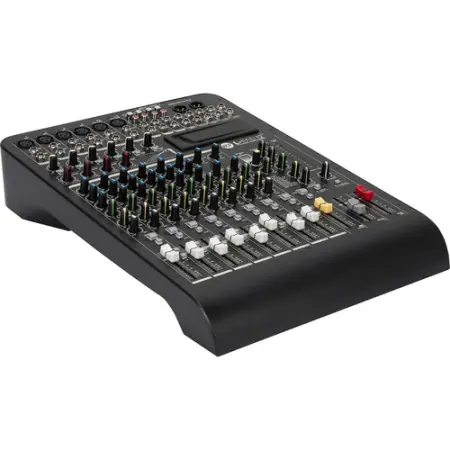

LPAD 12CX
12 channel mixer with compressor and effects

With six transparent sound mic inputs, four stereo line inputs and the 2tk in/ out, RCF's L-PAD 12CX is the ideal tool for small band gigs, complex conferences, corporate events and all situations where it is necessary to handle several signals. Four single-control compressors on mic channels help to handle even the more dynamic complex signals. The 99 preset Internal FX DSP allows the sound to be enhanced by adding accurate and warm effects. When not in use for Internal effects the FX send and the AUX sends allow small stage control, with the appropriate wedge monitors. The super versatile L-PAD slot permits the optional L-PAD MP3 Player, MP3 Player/Recorder or Bluetooth Connection cards to be inserted.

Features:

L-PAD 12CX offers a powerful internal effects DSP. The 99 preset selector allows you to choose between multiple warm effects.
The microphone preamp gives transparent sound with high-range gain scale and 75 Hz low cut filter
Long life ultra reliable 60mm faders, all passed along life use test including several tens of thousands of complete cycles.
Smooth-action, single-control dynamic compressors onchannels 1 through 4. Thanks to this feature even the most demanding signals are under control - one knob, great control.
Super versatile L-PAD Slot: One of the intelligent L-PAD option cards (sold seperately) may be installed, the MP3 Player, MP3 Player/Recorder, or the Bluetooth Connection cards. These optional cards expand your L-PAD mixer usability adding an internal music player, a super-intuitive recorder or allow you to connect any Bluetooth device to reproduce your favorite playlist
6 mono inputs with 3-band EQ
4 stereo inputs with 2-band EQ
1 AUX Send
1 FX Send

Specifications:

Mono Channels:
Microphone Input:  XLR Balanced
Frequency Response:  20 Hz - 22 kHz, +/- 1dB
Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
Gain Range:  0 dB to -50 dB
Max. Input:  +15 dB (balanced)
SNR:  < -100 dBr A-weighted
Phantom Power:  +48V with switch control
Line Input:  1/4" TRS Balanced
Frequency Response:  20 Hz - 22 kHz, +/- 1dB
Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
Sensitivity Range:  +15 dBu to -35 dBu
Compressor:
Gain:  0 ------> 9dB
Threshold:  20dB ------> 5dB
Stereo Input Channels:
Microphone Input:  XLR Balanced
Low Cut:  75 Hz
Line Input:  1/4" TRS or TRS/RCA unbalanced
Frequency Response:  20 Hz - 22 kHz, +/- 1dB
Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
Sensitivity Range:  +15 dBu to -35 dBu
SNR:  < -100 dBr A-weighted
DSP Section:
A/D and D/A Converters:  24-bit
Type of Effects:  Echo, Echo+Verb, Tremolo, Plate, Chorus, Vocal Rotary, Small Room, Flange+Verb, Large Hall
Controls:  100 position preset selector (10 presets x 10 variations)
Foot Switch:  Mute switch & foot-switching with LED indicator. Tip = FX, Sleeve = GND

RCF LPAD 12CX (RCF L PAD 12CX)
