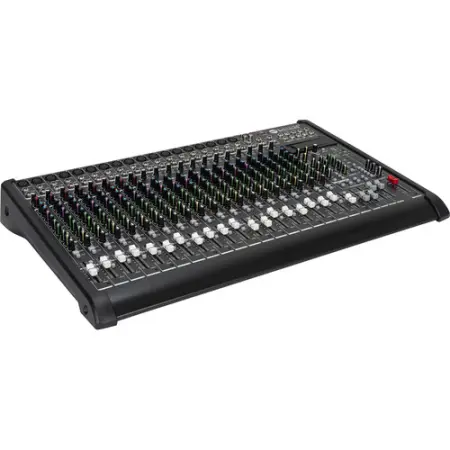

RCF L-PAD 24CX USB
24-Channel Mixing Console with Effects

The L-PAD 24CX USB is a 24-channel, 4-bus mixer with 18 Mic/Line, 4 Stereo Input, 4 Group out, EQ, 8 single-control compressors and internal effects, for any live performance reinforcement. It features 18 transparent sound, ultralow noise microphone inputs with balanced XLR connector or alternatively 16 mono line input with insert send/return, a three-band EQ with a sweepable mid frequency on 16 channels, 4 channels of stereo inputs with 4-band fixed EQs and 4-groups assignable sub mixes, 60mm long-live extra smooth faders and four AUX sends per channel (2 Pre/Post switchable pots). The L-PAD 24CX USB gives you all the features you need to mix any professional live performance.

Features:

• 18 MIC/LINE inputs, 4 STEREO inputs
• 8 single-control dynamic compressors (Ch. 1-Ch.8)
• 4 STEREO AUX returns
• 3-band EQ with sweepable MID Frequency on microphone channels
• 4-band fixed EQ on stereo line channels
• 4 AUX sends per channel: 2 PRE/POST faders switchable
• 4-GROUP MIX
• 24-bit DSP effects for 99 presets
• USB port for PC audio recording and playback

Compressors
The first 8 mic/line input are provided with smooth-action single-control dynamic compressors. Even the most demanding signals are under control.

Internal Effects
L-PAD 24CX USB offers a powerful internal effects DSP. The 99 preset selector allows you to choose between several warm effects.

High Headroom, Ultra Low Noise, Transparent Mic Preamps
All RCF L-PAD Series mixers are designed with high headroom and ultra low-noise, discrete mic preamps to always get the full dynamic range of your mix.

Faders
Long life extra smooth 60mm faders.

USB Audio Interface
Capture your live mix with your laptop and DAW software by simply connecting a USB cable to the L-PAD 24CX USB. This USB-enabled professional mixing console features a USB port that streams two channels of 24-bit audio out to your computer (Main Mix or Sub Mix 1/2). With the L-PAD 24CX USB you can record band rehearsals, club gigs, speech, worship events and any other live performance. Furthermore, this USB connection is bi-directional so you can also reproduce audio from your laptop to the L-PAD 24CX USB for audio and music playback.

Specifications:


Electronics

Frequency Response
20 Hz to 20 kHz

Total Harmonic Distortion (THD) + N
0.03%

Inputs
Mic
18

Gain Range
0 to -50 dB

Low Cut Frequency
75 Hz

Phantom Power
+48 V

# Of Mono Inputs & Type
16

Gain Range
20 to -30 dB

Stereo Line Inputs
4

Track Configuration
2

Stereo Return
4

Outputs
Main Mix
1

Control Room Outputs
1

Aux Sends
4

FX Range
1 Send

Groups
Group output: 4

Phones
2

Track Configuration
2

Compressor
Control 8; single control

Equalizer
Bands
MONO channels: 3

Sweepable mid frequency
100 Hz - 8 kHz

STEREO channels: 4

+/-15 dB @ 12 kHz - Shelving, +/-15 dB @ 3 kHz, +/-15 dB @ 500 Hz, +/-15 dB @ 80 Hz - shelving

AUX Section
Auxiliary Sends
AUX: 2 Pre/Post, 1 + 1 FX Post
FX: 1 Post

Effects
Height
99
USB

Tracks
Play track: 2
Rec track: 2

Electrical
Power Supply
Internal

Power Requirements
100-240 VAC, 50-60 Hz

Power Consumption
70 W

Cabinet
Material
Metal

Physical
Dimensions (W x H x D)
28.93 x 3.34 x 18.11" (735 x 85 x 460 mm)

Weight
21.31 lb (9.67 kg)
