Active Coaxial Stage Monitor
The

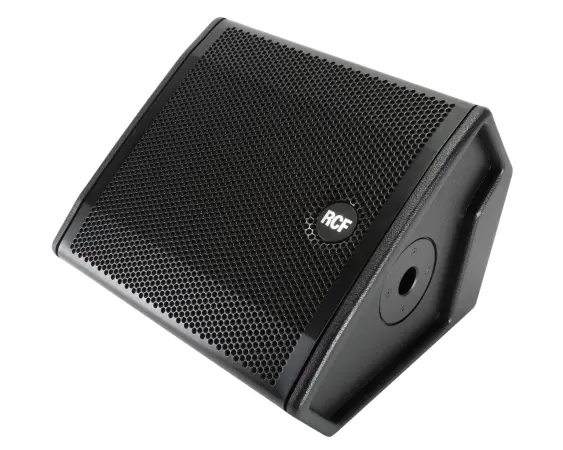

RCF NX 10SMA is a compact and versatile powered stage monitor designed for touring, live sound, and portable applications. Featuring a coaxial transducer, digital bi-amp design, and selectable EQ modes, it delivers consistent, high-definition sound whether used on the floor or on a pole as a portable PA system.
RCF NX 10SMA Competitive Differences
- 10" coaxial neodymium transducer for uniform coverage and clarity
- Selectable Floor / Free Field EQ modes for flexible monitoring or FOH use
RCF NX 10SMA Description
The
RCF NX 10SMA combines the power and precision of a touring-grade stage monitor with the portability of a small PA. At its core is a 400W RMS (800W Peak) digital amplifier powering a custom-designed 10" coaxial neodymium driver. This configuration ensures phase-coherent sound with excellent clarity and definition in both the nearfield and wide coverage areas.
Whether you're a vocalist needing a tight stage mix or a mobile DJ requiring a compact PA system, the NX 10SMA adapts to your needs. Two EQ presets—Floor and Free Field—let you optimize the speaker for wedge or stand-mounted use, ensuring clean audio performance in any setup.
Constructed from Baltic birch plywood and finished with a rugged, weather-resistant coating, the NX 10SMA is built to withstand the rigors of the road. A steel grille and recessed side handle enhance its durability and ease of transport, while the built-in 35mm pole mount expands deployment options beyond the stage.
With a max SPL of 127 dB and full-range response from 60 Hz to 20 kHz, this speaker punches well above its size, making it an ideal solution for musicians, rental companies, and audio professionals seeking reliability and flexibility in a single enclosure.
Model Features
- Coaxial 10” neodymium transducer with 1.75” HF voice coil
- 400W RMS digital bi-amplification (800W Peak)
- 127 dB max SPL
- 60° x 60° constant directivity coverage
- Select between Floor and Free Field EQ modes
- Balanced XLR/jack combo input with XLR output
- 35 mm pole mount for use as a portable PA
- Baltic birch plywood cabinet with durable paint finish
Model Specifications
- Max SPL: 127 dB
- Frequency Response: 60 Hz – 20,000 Hz
- Power Output: 400W RMS / 800W Peak (100W HF, 300W LF)
- Coverage: 60° x 60°
- Transducers: 10” woofer with 2.5” voice coil, 1” HF driver with 1.75” voice coil
- Input Connectors: XLR / ¼" Combo
- Output Connector: XLR
- EQ Modes: Floor, Free Field
- Cabinet: Baltic birch plywood
- Mounting: 35 mm pole mount
- Dimensions: 12.76 x 17.72 x 16.42 in (324 x 450 x 417 mm)
- Weight: 31.53 lb (14.3 kg)
What's In The Box
- RCF NX 10SMA stage monitor
- Power cable
- User manual
