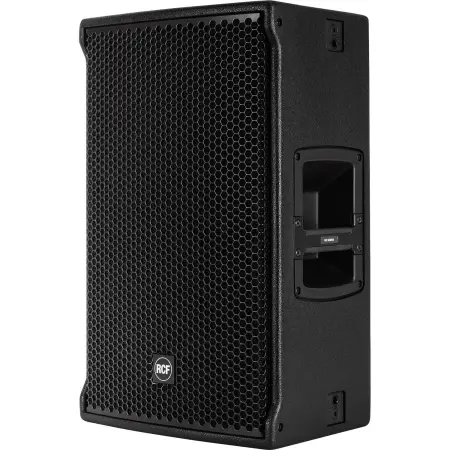

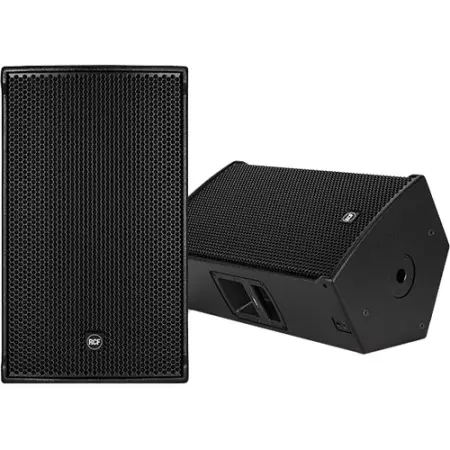

The Active Two-Way Multi-Purpose Speaker from RCF can be used either as a standalone FOH system or as a satellite speaker and is designed to be an everyday tool for rental companies and professional musicians. The integrated two-way 1400W amplifier features a solid machined aluminum structure, which not only stabilizes it during transportation but also assists in heat dissipation. The internal DSP has limiters and protections for the transducers and uses FiRPHASE filters to help achieve a coherent distribution of sound without phase distortion. A single button shapes the sound for background music purposes when the system plays at minimum volume levels.

Features:
12" Woofer, 2.5" Voice Coil
2-Way Class-D 1400W Amplifier
131 dB SPL Max
50 Hz - 20 kHz Frequency Response
For Use as FOH or Satellite Speaker
FiRPHASE Filters
Switchable EQ Mode
Mic/Line Sensitivity Switch
Power, Status & Signal LEDs
Multiple Rigging Points

In/Out Connectors
The amplifier presents both XLR in/out connectors and a jack input for connection versatility.

Switchable EQ
A switchable EQ Mode makes it easier to select among two different equalization presets:
Extended response switch, slightly emphasizes bass response for playback music and low-volume applications
Linear response switch, useful when the speaker is used to amplify a live mix — the amplifier's built-in limiter circuit prevents clipping or over-driving the transducers.

Mic/Line Switch
A mic/line switch helps adjust the input sensitivity. When used for speech, the mic setting allows to use a microphone directly with the speaker. Set the selector to line when using the speaker for live music or playback.

Volume Knob
An easy-to-reach volume knob on the back allows to set the overall volume of the speaker according to its application.
Status LEDs
Status LEDs are provided for monitoring the system's power, signal, and status.

Specifications:
Acoustic Specifications
Frequency Response 50 Hz - 20 kHz at -3 dB
Max SPL 131 dB
Horizontal Coverage Angle 90°
Vertical Coverage Angle 40°

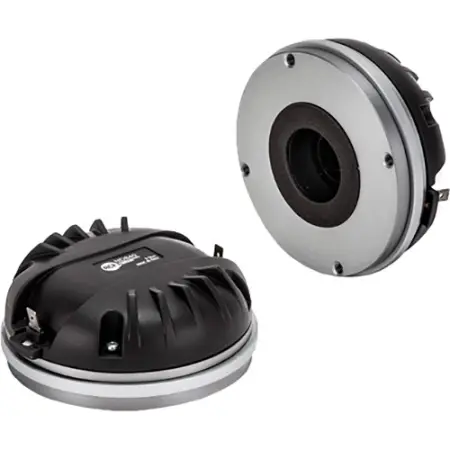

Compression Driver 1.4" / 36 mm, neodymium, 3.0" / 76 mm voice coil
Woofer 12" / 305 mm, 2.5" / 63 mm voice coil
Input / Output
Input Signal Balanced/unbalanced
Input Connectors XLR, jack
Output Connectors XLR
Input Sensitivity -2 / +4 dBu
Mic Input Sensitivity -32 dBu
Processor Section
Crossover Frequencies 700 Hz
Protections Thermal, RMS
Limiter Soft limiter
Controls Volume, boost, mic/line
Amplifier Specifications
Peak Total Power: 1400 W
High Frequencies: 400 W
Low Frequencies: 1000 W
RMS Power Total Power: 700 W
High Frequencies: 200 W
Low Frequencies: 500 W
Cooling Convection
Connections PowerCON in/out
Cabinet
Material Baltic birch plywood
Hardware 5 x M10, 4 x quick lock

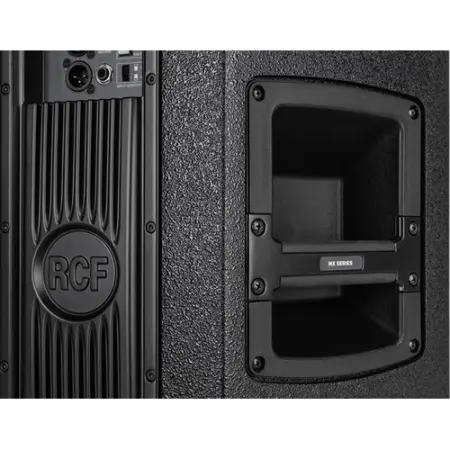

Handles 2, side-mounted
Pole Mount/Cap Yes
Grille Steel
