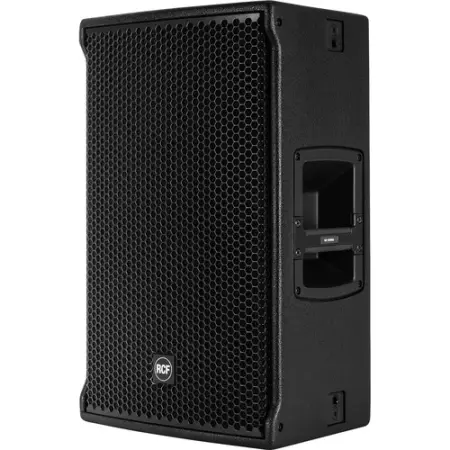

RCF NX 32A

The RCF NX 32-A is an active two-way multipurpose speaker. It is specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-quality sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a or a front, down or side fill speaker.

Features:

1400 W 2-way class-D amplifier
131 dB SPL Max
50 – 20000 Hz Frequency Range
90° x 60° constant directivity coverage
12" woofer, 2.5" voice coil
Horn loaded 3.0''neodymium c. driver
Multiple rigging points

Specifications:

Acoustical specifications
Frequency Response: 50 Hz ÷ 20000 Hz
Max SPL @ 1m: 131 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°
Transducers
Compression Driver: 1.4'' neo, 3.0'' v.c
Woofer: 12'', 2.5'' v.c

Input/Output section
Input signal: bal/unbal
Input connectors: XRL, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu

Processor section
Crossover frequencies: 700 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, boost, Mic/Line

Power section
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Standard compliance
CE marking: Yes

Physical specifications:
Cabinet/Case Material: Baltic birch plywood
Hardware: 5 x M10, 4 x quick lock
Handles: 2 Side
Pole mount/Cap: Yes
Grille: Steel
Color: Black

Size
Height: 600 mm / 23.62 inches
Width: 365 mm / 14.37 inches
Depth: 378 mm / 14.88 inches
Weight: 20.6 kg / 45.42 lbs
Shipping information
Package Height: 655 mm / 25.79 inches
Package Width: 425 mm / 16.73 inches
Package Depth: 440 mm / 17.32 inches
Package Weight: 23.6 kg / 52.03 lbs

RCF NX32-A (RCF NX 32A)
