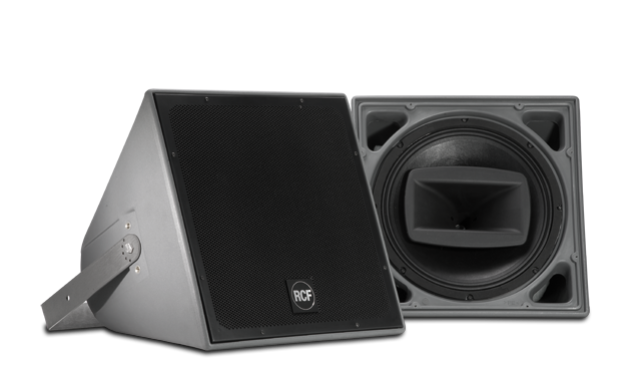

RCF P3115 (RCF P 3115)

The P3115-T is a weatherproof full range, wide-dispersion, coaxial two way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

The high-frequency section is a constant directivity CMD horn loaded to a 1” RCF Precision compression driver with a 1.5” diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a 15” woofer with a 2.5” voice coil. The P3115-T features a selectable line transformer for 70 - 100 Volt applications. P 3115-T meets the requirements of IP 55 code (International Protection Rating).

FEATURES

Cabinet is a single piece rotational moulded in medium density polyethylene, fully UV protected and waterproof IP 55
Front grille in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing
Stainless steel bracket
15" high-output LF transducer with 2.5" voice coil
RCF Precision 1" Compression Driver with 1.5" voice coil
90° x 60° constant directivity horn
10° X 20° enclosure sides for array configurations
Active Mosfet Compression Driver Protection
12 brass suspension points (M10)
Line transformer

ACOUSTICAL SPECIFICATIONS

Frequency Response -10 dB:75 Hz ÷ 20000 Hz
Max SPL @ 1m:129 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Directivity index; Q:13.3
System Sensitivity:98 dB
Nominal Impedance:16 Ω
Power Handling:300 W
Peak Power Handling:1200 W
Protections:dinamyc
Crossover frequencies:1300 Hz

TRANSDUCERS

Compression Driver:1" HF driver, 1.5" voice coil
Nominal Impedance:8 Ω
Input Power Rating:25 W AES
Sensitivity:108 dB
Woofer:15" woofer, 2.5" voice coil
Nominal Impedance:16 Ω
Input Power Rating:250 W AES
Sensitivity:98 dB

INPUT SECTION

Input connector:4-adriges Neopren Kabel, 5m
Constant voltage transformer:70/100 V
Power Selection:70V/60W, 30W , 100V/120W, 60W

CABINET

Cabinet Material:Polyethylene rotomoulded
Hardware:12 x M10 inserts+ U-brackets and pair of spacers
Grille:Custom perforated aluminium grillewith open-cell fiber and water repellent woven fabric backing
Color:grey

PHYSICAL SPECIFICATIONS

Height:463 / 18.22 mm/inch
Width:463 / 18.22 mm/inch
Depth:433 / 17.04 mm/inch
Net Weight:19.4 / 42.76 kg/lbs
