RCF RDNet2

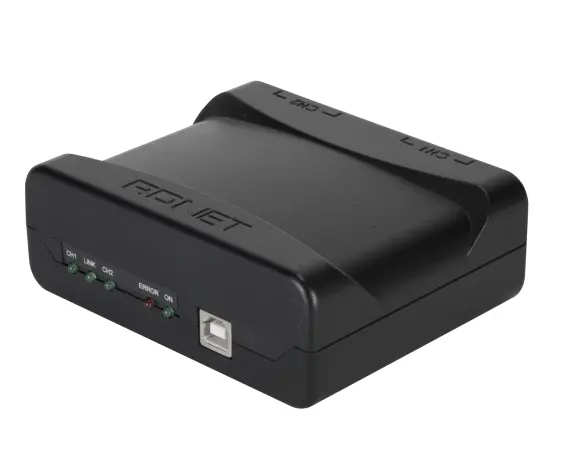

RCF RDNet2 (RCF RD Net Control 2)

The RDNet Control 2 is an hardware interface to connect RCF RDNet compatible devices (TTL55-A, TTL33-A II, TTL31-A II, etc.) to a Personal Computer (PC) by means of an USB connection.

The RDNet system was purposely developed to create a data network for monitoring and command of more systems. The RDNet Control 2 unit can manage up to 2 subnets. Up to 32 devices can be connected to each subnet (2 subnets x 32 = total 64 devices).
The addressing of the various devices is handled automatically by RDNet Control 2 interface. Each device is assigned a unique address during the power on procedure of network.
For the RDNET network operating, it is necessary to install the appropriate Software on PC, on Microsoft Windows® environment. From PC it is possible to check the operating of each single device connected to the network and edit its parameters output level, mute, equalization, delay, etc.

The network and devices configuration can be saved as file in the PC and later reloaded. RDNET is a “real-time” system: Information relating to the functioning of the devices is acquired in real-time, a feature that allows a global view of connected devices.

FEATURES

Real-time acquisition of devices functioning information
Devices automatic addressing handling
32 compatible devices linkable in "daisy-chain" for each of the 2 available RDNET ports
All devices listed and cyclically scanned ("polling"). 10 times a second, each device checked in a single daisy-chain
Connected devices are automatically added to the software synoptic

NETWORK

EIA RS-485 standard connection
Daisy-chain ring architecture or bus connection
Up to 2 subnet managed
Up to 32 slave devices for subnet

RDNET CONNECTION

2 Ethercon housed RJ45 with Ethernet Cat5 cable
2 XLR chassis connectors with XLR data cable (alternative to RJ45)

PC CONNECTION

USB standard connection
Front panel USB type B female connector for direct control
Rear panel standard RJ45 connector for remote control

POWER CHARACTERISTICS

Powered by USB Type B socket
Powered by USB Type B socket

MECHANICAL CHARATCERISTICS

Width:111/4.37 mm/inch
Height:40.5/1.59 mm/inch
Depth:89.5/3.52 mm/inch
Weight:0.175/0.38 Kg/lbs
Materials:ABS Plastic BOX
