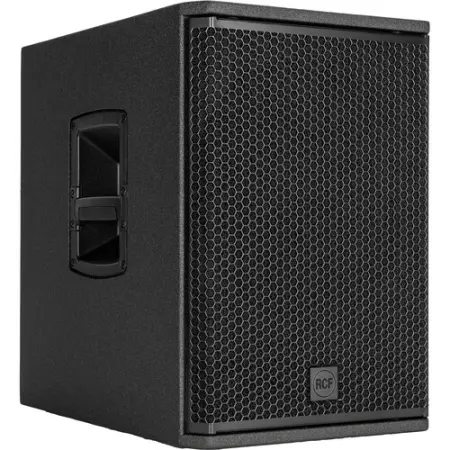

Designed to complement the ART-Series or any full-range speaker, the RCF SUB 702-AS MK3 is a portable 12" high-powered active subwoofer well suited for bands, DJs, clubs, touring companies, and rental houses.

The subwoofer's integrated Class-D amplifier delivers 1400W of peak power to the 12" driver, which offers a frequency range of 40 to 120 Hz with a maximum SPL of 129 dB, making it great for small to midsize venues and touring applications. Rear-panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry, and install securely.

At a Glance
1400W Class-D amplifier
15” woofer, bass reflex housing
40 to 120 Hz frequency response
129 dB max SPL
Stereo crossover
Switchable crossover frequencies
Polarity-reverse switch
Electronic equalization, soft limiter, and protection
Stereo XLR input, stereo XLR signal output
Bass Motion Control excursion management
Legendary Subwoofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, long-term reliability, and impressive size/weight to SPL output ratio. Your crowd will be able to have engaging immersive experiences with both live sound or DJing applications.
Power That Moves
RCF's improvements in transducer design make them stronger and more powerful, so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound pressure levels with an ultrafast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient so there's no need for a cooling fan.

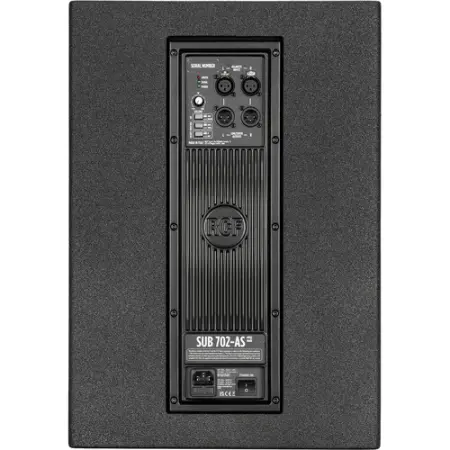

The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a switched-mode power supply section joining high-efficiency with minimum weight.
Custom Settings

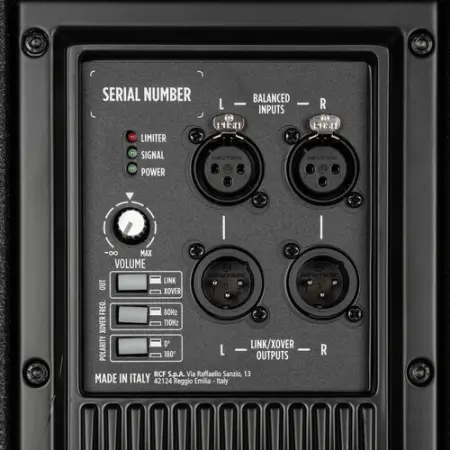

SUB 7 Series subwoofers can be configured from the rear panel, and features a full set of commands:
X-Over Preset: 80 Hz / 110 Hz
Polarity Reverse
Out Signal: Line / High Pass
Bass Motion Control
When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
Tour-Ready Workhorse
The subwoofer is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and stack due to its light weight. All are equipped with ergonomic handles with rubber grips for easy setup and teardown. The M20 threaded pole mount on the top allows the cabinet to support speakers with a pole mount.
The heavy-duty polyurea coating, the powder coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. With its frontal vented ports, the subwoofer can also be used in recessed spaces.

FEATURES:

For Small to Midsize Venues
Great for Portable Applications
1400W Class-D Amplifier
12" Woofer, 2.5" Voice Coil
Stereo Crossover, Switchable Frequencies
129 dB Max SPL
Baltic Birchwood Bass-Reflex Housing
Phase-Reversal Switch
Electronic EQ, Soft Limiter, Protections
Stereo XLR 3-Pin I/O

SPECIFICATIONS:

Configuration
Active Subwoofer
Enclosure Type
Subwoofer
Total Power Capacity
700 W RMS
1400 W Peak
HF Driver
No
MF Driver
No
LF Driver
1x 12" / 304.8 mm Inverted Woofer
Wireless Connectivity
No
Color
Black
Enclosure Type
Subwoofer
Total Power Capacity
700 W RMS
1400 W Peak
Amplifier Class
Class-D
Drivers
HF Driver
No
MF Driver
No
LF Driver
1x 12" / 304.8 mm Inverted Woofer
LF Voice Coil
2.5" / 63.5 mm
Performance
Frequency Response
40 Hz to 120 Hz
Maximum SPL
129 dB
Input Sensitivity
+4 dBu to -2 dB
Protections
RMS, Thermal
Connectivity
Audio I/O
2x XLR 3-Pin Female Balanced/Unbalanced Link Input
2x XLR 3-Pin Male Balanced/Unbalanced Link Output
Network I/O
No
USB I/O
No
Wireless Connectivity
No
Bluetooth
No
Mobile App Compatible
No
Signal Processing
Crossover
Low-Pass:
80 Hz
High-Pass:
110 Hz
EQ
Yes
Parametric EQ
No
Semi-Parametric EQ
No
Dynamic Processing
Soft Limiter
Alignment Delay
No
Phase Adjustment
Yes
Power
AC Input Power
100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz
AC Power I/O
1x IEC Input
Physical
Color
Black
Mounting
1 x 1.4" / 35 mm Pole Socket (Top)
Handles
2x Side
Construction Material
Plywood, Steel
Dimensions
20.5 x 20.2 x 14.1" / 52.1 x 51.3 x 35.8 cm
Weight
46.3 lb / 21 kg
Packaging Info
Package Weight
56.72 lb
Box Dimensions (LxWxH)
22.25 x 22.25 x 16.5"

RCF USA SUB 702-AS MKIII (RCF SUB 702-AS)
