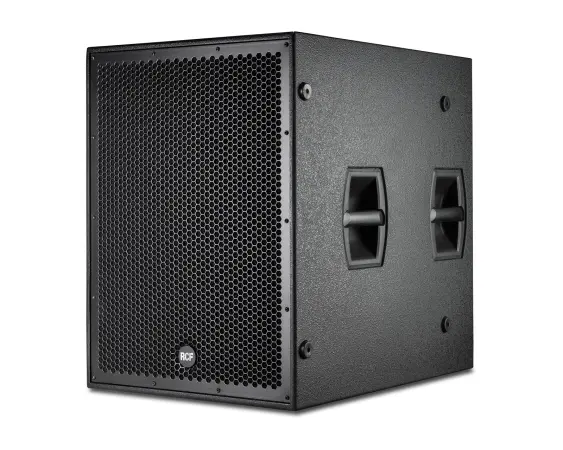

SUB 8005-AS
ACTIVE HIGH POWER SUBWOOFER

The SUB 8005-AS is on of the most powerful 21” subwoofers in pro-sound category.
Featuring a high power, hypervented 21” woofer, with 4.5” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8005-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.

FEATURES
2500 Watt Peak, 1250 Wat RMS
137 dB max SPL
27 Hz - 120 Hz frequency response
21" Woofer, 4.5" voice coil vented woofer
DSP controlled Input section with selectable presets
Delay control
Baltic birch tour grade cabinet
Compatible with NXL23-A (stacking)
Compatible with NXL24-A (stacking)
Multiple configurations with HDL 10-A and HDL 20-A

• Live sound
• Rental
• Portable PA, clubs, ballrooms, live theatre
• House of worship
• Theme parks
• Music playback and sound reinforcement in small and mid-size venues
• Corporate A/V professionals and sound system hire companies

ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:27 Hz ÷ 120 Hz
Max SPL:137 dB
Woofer:21", 4.5" v.c.
INPUT/OUTPUT SECTION
Input signal:bal/unbal
Input connectors:XLR
Output connectors:XLR
Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
Crossover frequencies:Selectable 90 Hz - 120 Hz Hz
Protections:Thermal, RMS
Limiter:Fast limiter
Controls:Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid
AMPLIFIER SPECIFICATIONS
Total power:2500 W PEAK
   Low frequencies:2500 W PEAK
Total power:1250 W RMS
   Low frequencies:1250 W RMS
Cooling:Convection
Connections:Powercon in-out
CABINET
Cabinet Material:Baltic Birch
Hardware:2xM20, 4 x wheels mounting points
Handles:2 side
Colour:Black
PHYSICAL SPECIFICATIONS
Height:825 / 32.48 mm/inch
Width:600 / 23.62 mm/inch
Depth:805 / 31.69 mm/inch
Net Weight:66.6 / 146.8 kg/lbs

RCF 4PRO 8005 AS (RCF Sub8005-AS)
