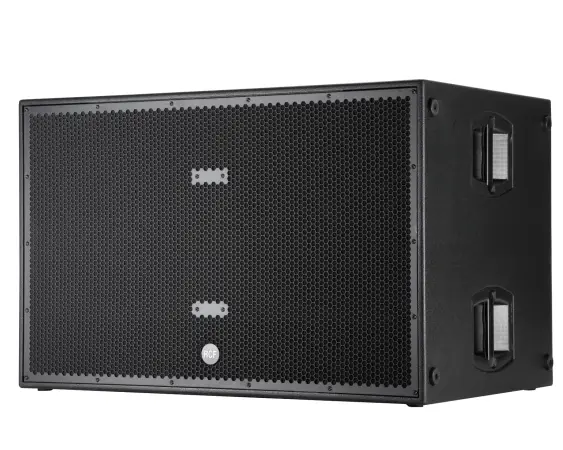

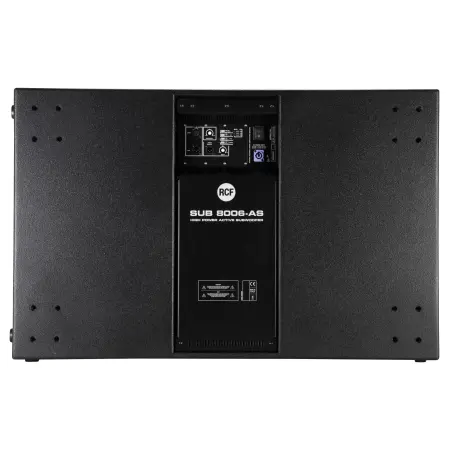

RCF SUB 8006-AS (RCF SUB8006as)

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series.
Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to delivery a serious amount of low  frequency.
Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

FEATURES:

5000 Watt Peak power - 2500 Watt RMS
141 dB max SPL
30 Hz - 120 Hz frequency response
2 x 18" Woofer
DSP controlled Input section with selectable presets
Delay control
Integrated mechanics for multiple configuration with HDL 20-A
Baltic birch tour grade cabinet

ACOUSTICAL SPECIFICATIONS:

Frequency Response -3 dB:30 Hz ÷ 120 Hz
Max SPL:141 dB
Woofer:2 x 18", 4.0" v.c.

INPUT/OUTPUT SECTION:

Input signal:bal/unbal
Input connectors:XLR
Output connectors:XLR
Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION:

Crossover frequencies:Selectable 80 Hz - 100 Hz Hz
Protections:Thermal, RMS
Limiter:Fast limiter
Controls:Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

AMPLIFIER SPECIFICATIONS:

Total power:5000 W PEAK
   Low frequencies:5000 W PEAK
Total power:2500 W RMS
   Low frequencies:2500 W RMS
Cooling:Convection
Connections:Powercon in/out

CABINET:

Cabinet Material:Baltic Birch
Hardware:Mounting points
Handles:4 side
Colour:Black

PHYSICAL SPECIFICATIONS:

Height:709 / 27.91 mm/inch
Width:1109 / 43.66 mm/inch
Depth:700 / 27.5 mm/inch
Net Weight:90 / 198.41 kg/lbs

RCF SUB-8006AS (RCF SUB-8006-AS)
