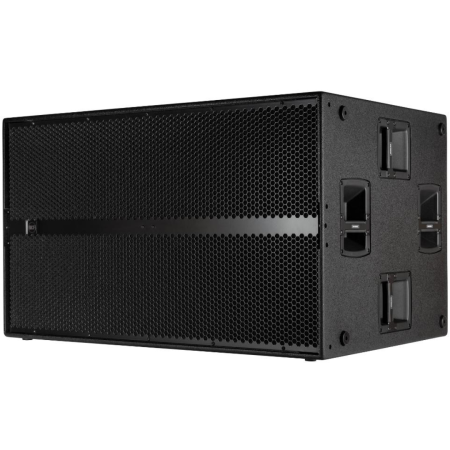

SUB 9007-AS
ACTIVE HIGH POWER SUBWOOFER

The SUB 9007-AS is one of the most powerful 2x21” subwoofers in the field of live sound. Featuring two, high power, hyper-vented 21” neodymium woofers with 4.0” inside-outside voice coils, this cabinet deliver a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB 9007-AS can perform in the most demanding situations. The housing of the SUB 9007-AS match the RCF D-Line HDL 50 and HDL 20 array systems, enabling stacked systems matched a perfect combination.

Features:

7200 Watt Peak power - 3600 Watt RMS
143 dB max SPL
25 Hz - 120 Hz frequency response
2 x 21" Woofer
DSP controlled Input section with selectable presets
Delay control
Integrated mechanics for multiple configurations with HDL50-A, HDL20-A, HDL10-A
RDNet remote and control
Baltic birch tour grade cabinet

Specifications:

ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:20 Hz ÷ 400 Hz
Max SPL:141 dB
Woofer:2 x 21", 4.0" v.c.
INPUT/OUTPUT SECTION
Input signal:bal/unbal
Input connectors:XLR
Output connectors:XLR
Input sensitivity:+4 dBu
PROCESSOR SECTION
Crossover frequencies:Selectable Hz
Protections:Thermal, RMS
Limiter:Fast limiter
Controls:Gain, EQ, Xover, Phase switch, Output Delay Settings, Cardioid

AMPLIFIER SPECIFICATIONS
Total power:7200 W PEAK
   Low frequencies:7200 W PEAK
Total power:3600 W RMS
   Low frequencies:3600 W RMS
Cooling:Convection
Connections:Powercon in/out, RDNet connectors

CABINET
Cabinet Material:Baltic Birch
Hardware:Mounting points, 2 x M20
Handles:8 side
Color:Black

PHYSICAL SPECIFICATIONS
Height:708 / 27.89 mm/inch
Width:1188 / 46.77 mm/inch
Depth:780 / 30.9 mm/inch
Net Weight:98 / 216.0 kg/lbs

RCF Sub-9007 AS (RCF Sub 9007 AS)
