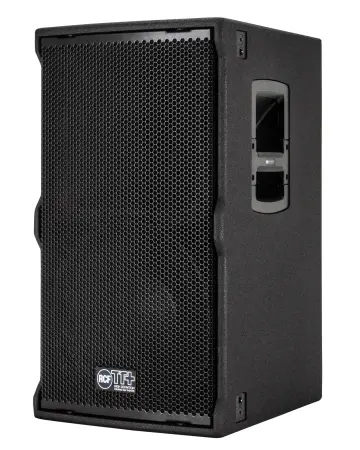

RCF TT2A (RCF TT2-A)

The RCF TT2-A is the most flexible and powerful tool in its class.
The incredible output and dynamics, the extreme linearity and fidelity makes the TT2-A a special product in its category. The RCF TT2-A is the ideal compact two-way speaker for near field sound reinforcement, live sound and corporate events. The integration of the 1600 Watt, two channel, digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency. The RCF powered speaker is equipped with a complete set of integrated rigging mechanics for rental or installation. Dedicated accessories to create clusters are available.

FEATURES

1600 Watt, 2 way amplification
12" neo woofer, 4" v.c.
2" titanium dome neo compression driver, 3.0" v.c.
90° x 50° precision waveguide
96 Khz, 32 bit DSP processing
Maximum output, perfect audio fidelity
Tour grade cabinet and mechanics
RDNet Ready

ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB:50 Hz ÷ 20000 Hz
Max SPL:134 dB
Horizontal coverage angle:90°
Vertical coverage angle:50°
Compression Driver:2" neo, 3.0" v.c.
Woofer:12" neo, 4.0 v.c.

INPUT/OUTPUT SECTION

Input connectors:xlr, RDNet
Output connectors:xlr, RDNet
Input sensitivity:+4 dBu

PROCESSOR SECTION

Crossover frequencies:750 Hz
Protections:Thermal, rms
Limiter:soft limiter, dynamic
Controls:Gain reduction, RDNet local setup/bypass, Time Delay, Presets (Linear, Close, Far listening, High-pass), RDNet Ready

AMPLIFIER SPECIFICATIONS

Total power:1600 W RMS
   High frequencies:500 W RMS
   Low frequencies:1100 W RMS
Cooling:convection
Connections:Powercon In-Out

CABINET

Cabinet Material:Baltic birch plywood
Hardware:Installation/Rental fittings
Handles:2 side
Pole Mount/Cap:yes
Colour:black

PHYSICAL SPECIFICATIONS

Height:643/25.31 mm/inch
Width:372/14.64 mm/inch
Depth:470/18.50 mm/inch
Net Weight:34/74.95 kg/lbs
