RCF TT25-SMA
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

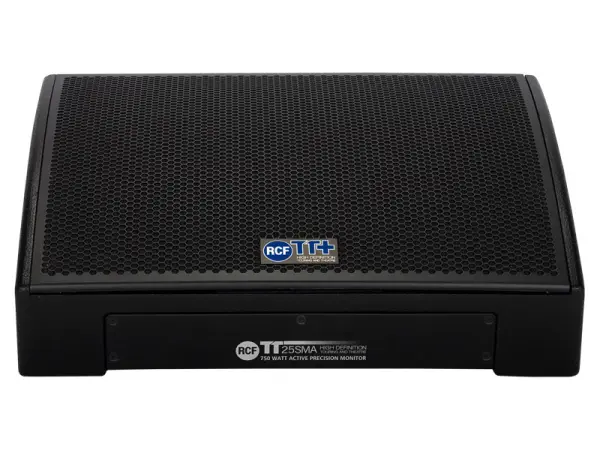

RCF TT25-SMA (RCF TT25SMA)

The TT25-SMA is a full range, high performance coaxial stage monitor.

The linear curve response, the consistent coverage and acoustic output make the TT25-SMA the professional choice for most demanding situations. The voicing is accurate and deep, the sound transparent in the mids and extremely accurate at very high frequencies. The size is compact and the profile very low for a discrete stage professional appearance. Loop through output and power panel on opposite side to minimize cable runs on stage.

FEATURES

750 W switching amplifiers
60° conical, constant directivity coverage angle
3.5" voice coil, neodymium woofer
2.5" voice coil, neodymium compression driver
High quality analog input board
Soft limiter RMS protection
Very low profile
Very high output

ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB:50 Hz ÷ 20000 Hz
Max SPL:131 dB
Horizontal coverage angle:60°
Vertical coverage angle:60°
Compression Driver:1.5 " neo, 64 mm voice coil
Woofer:15" neo, 87 mm voice coil

INPUT/OUTPUT SECTION

Input signal:Bal/unbal
Input connectors:XLR
Output connectors:XLR
Input sensitivity:-2 dBu / + 4 dBu

PROCESSOR SECTION

Crossover frequencies:1200 Hz
Protections:Thermal, HF
Limiter:RMS, fast limiter
Controls:Side/ floor coupling
AMPLIFIER SPECIFICATIONS
Total power:750 W RMS
   High frequencies:D/250 W RMS
   Low frequencies:D/500 W RMS
Cooling:Convection
Connections:Powercon in/out

CABINET

Cabinet Material:Baltic birch
Handles:2 on side
Colour:Black

PHYSICAL SPECIFICATIONS

Height:330 / 12.99 mm/inch
Width:580 / 22.83 mm/inch
Depth:432 / 17.00 mm/inch
Net Weight:20 / 44 kg/lbs
