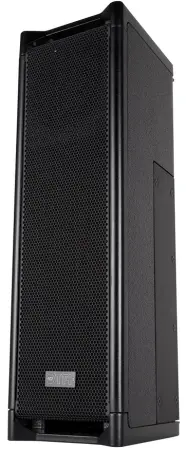

RCF TT052 A (RCF TT 052A) Active Speaker
The RCF TT052-A is an extremely compact, active loudspeaker
specifically designed for indoor applications where the audio beam must be
directed towards specific zones.
It is equipped with two 5” neodymium woofers and a 1” compression driver. Thanks
to its constant directivity horn and high volume output, the TT052-A can be used
to guarantee the perfect intelligibility in critical environments.
Features
- 300 W Class D amplifier
- Heavy duty multi-functional cabinet
- 2 x 5" low distortion woofer
- 1" ne compression driver, 1.5" v.c.
- DSP processing
- Wall mount EQ, High pass EQ
- RDNet ready
Acoustical Specifications
- Frequency Response -3 dB:
65 Hz ÷ 20 kHz
- Max SPL:
123 dB
- Horizontal coverage angle:
Conical 90°
- Vertical coverage angle:
Conical 90°
- Compression Driver:
1" neo, 1.5" v.c.
- Woofer: 2
x 5" woofer, 1.2" voice coil
Input/Output Section
- Input signal:
Bal/unbal
- Input connectors:
XLR, RDNet ready
- Output connectors:
XLR
- Input sensitivity:
-2 dBu / + 10 dBu
Processor Section
- Crossover frequencies:
1500 Hz
- Protections:
Thermal, Excurs., HF
- Limiter:
Soft limiter
- Controls:
DSP controlled
Amplifier Specifications
- Total power:
300 W
- High frequencies:
D/150 W
- Low frequencies:
D/150 W
- Cooling:
Convection
- Connections:
Powercon in/out
Cabinet
- Cabinet Material:
Baltic birch
- Hardware:
Multi-functional
- Handles:
Top, bottom
- Colour:
Black
Physical Specifications
- Height:
493/19.40 mm/inch
- Width:
150/5.90 mm/inch
- Depth:
190/7.48 mm/inch
- Net Weight:
7.2/15.87 kg/lbs
