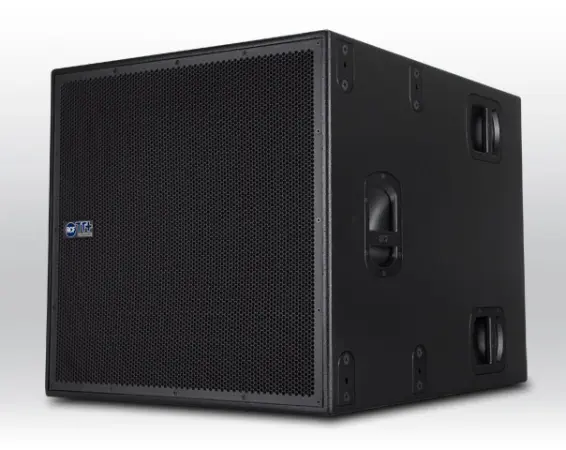

RCF TTS28 (RCF TTS28)

The TTS28 is a direct radiating, high output, large format subwoofer system proven in complementing high-efficiency, full range loudspeakers.

Driver mounting maximizes cone area and minimizes frontal area, providing acoustical performance and physical configuration well suited for creating large subwoofer arrays. New top quality neo drivers provide the highest output and best sonic performance possible for a given form factor.


FEATURES

Very compact size
Maximum output per size available on market
Minimum weight
2 x high power full neodymium 18" transducers
2000 Watt power handling
Baltic birch cabinet

ACOUSTICAL SPECIFICATIONS

Frequency Response -10 dB:30 Hz ÷ 110 Hz
Max SPL @ 1m:139 dB
System Sensitivity:100 dB
Nominal Impedance:4 Ω
Power Handling:2000 W
Peak Power Handling:8000 W
Recommended Amplifier:4000 Watt W

TRANSDUCERS

Woofer:18" woofer, 4" voice coil
Nominal Impedance:8 Ω
Input Power Rating:2400 W AES
Sensitivity:99 dB

INPUT SECTION

Input connector:Speakon NL4
Output connector:Speakon NL4

CABINET

Cabinet Material:Baltic birch
Hardware:Fittings ready
Handles:6 on side
Pole Mount/Cap:Ready
Colour:Black

PHYSICAL SPECIFICATIONS

Height:700 / 27.55 mm/inch
Width:700 / 27.55 mm/inch
Depth:920 / 36.22 mm/inch
Net Weight:73 / 160.93 kg/lbs
