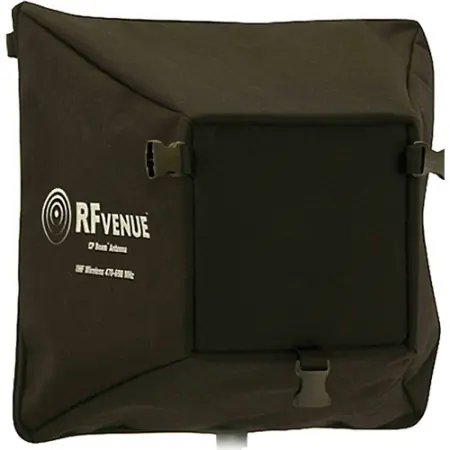

The CP Beam Antenna by RF Venue is a uniquely designed, long-range antenna for wireless microphones and IEM (In Ear Monitoring) systems. Featuring a circularly polarized yet lightweight design, the CP Beam delivers optimal RF performance in a package that folds flat for easy storage and transport. The CP Beam Antenna operates on a wide frequency range of 470 to 698 MHz.
The antenna weighs just 2.5 lb and provides 9 dB of gain making it useful for long-range applications. Widely used on concert tours, it's ideal for outdoor applications. The CP Beam can be connected to any brand of IEM, wireless mic, or UHF intercom.
Features:
High-performance directional UHF antenna with a wide frequency range of 470 to 698 MHz
The antenna quickly deployed and stowed, fitting in a 2 RU rack drawer
The 9 dBd of gain makes it a suitable choice for long-range applications
Connects to any brand of IEM, wireless mic, or UHF intercom
Can be used on major concert tours and comms systems
RF Venue CPB Specs:
Electrical
Operating Frequency 470 to 698 MHz
Bandwidth 228 MHz
Average Return Loss -13.15 dB
Impedance (Ohms) 50 Ohms
Pattern Type Beam
Polarization RHCP
Coverage
Horizontal Axis Beam Width 63°
F/B Ratio -10 dB
F/S Ratio -12 dB
Vertical Axis Beam Width 70°
F/B Ratio -9 dB
F/S Ratio -12 dB
Squint < 2 dB
Gain 9 dBd
Physical
Dimensions (L x H) 13.9 x 13.9" / 355 x 355 mm
Weight 2.4 lb / 1.1 kg
Mount Thread Size 1/4-20", 3/8-16", 5/8-27"
Operating Temperature -9.4 to 129.2°F / -23 to 54°C
Color Black
Connectors N Female (BNC Supplied)
