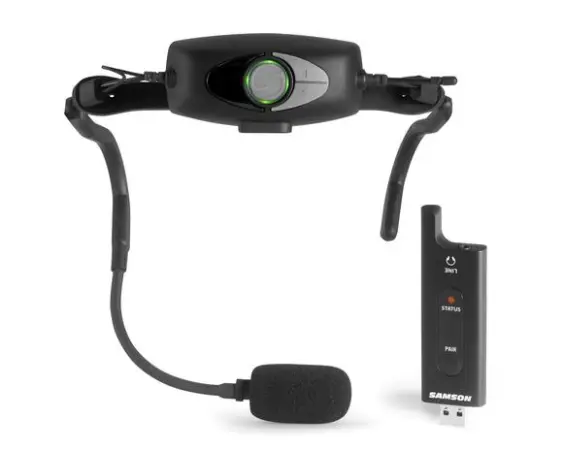

Engineered to provide crystal clear audio to fitness instructors and performers on the move, the AirLine XD Digital Wireless System from Samson is a 2.4 GHz, all-in-one wireless system that combines an AHD micro headset transmitter and built-in Qe microphone with a convenient RXD2 USB wireless receiver for up to six hours of quality audio without any bodypacks, cables, or other obstructions. The combo headset transmitter and Qe mic is water and sweat resistant, making it ideal for highly active performers and instructors, and the plug-and-play USB receiver sports a long, 100' line-of-site operating range as well as a 3.5mm headphone output for monitoring your transmissions and broadcasts.

This streamlined system is designed for hassle-free operation and sports easy one-touch pairing between devices as well as a rechargeable internal battery for the moisture-resistant headset. The Qe condenser is bidirectional, helping to eliminate unwanted background noises, and the system comes with plenty of cables to get you started, including a magnetic charging cable for the headset, a USB-A to USB-C adapter, and a USB extension cable.

AHD Micro Transmitter
Thanks to its micro design, the AHD transmitter is mounted directly to a Samson Qe headset microphone, eliminating any need for additional wires and bodypacks. The transmitter is completely sealed and is water and sweat resistant, ensuring rock-solid performance from even the most active instructors. The transmitter has a built-in rechargeable lithium-ion battery that offers 6-hours of continuous use and provides up to 100’ of wireless operation.
AHD micro transmitter mounted directly to a double ear headset
Water and sweat resistant Qe headset microphone
Up to six hours of battery life with internal, rechargeable lithium-ion battery
Sealed gold contact charging connector
Variable onboard gain control
Includes magnetic charging cable
RXD2 USB Receiver
A streamlined setup is essential to empowering any active performer or presenter. The RXD2 USB stick receiver easily connects to Mac or Windows computers or any Samson Expedition Series Portable PA System with a USB wireless port. One-touch pairing instantly syncs the receiver and transmitter for a quick and easy setup. The RXD2 has a 3.5mm analog output that can be used with headphones, or to connect to other devices with an analog input. A USB-A to USB-C adapter is also included for using the system with other compatible devices.
USB stick receiver with 3.5mm headphone output

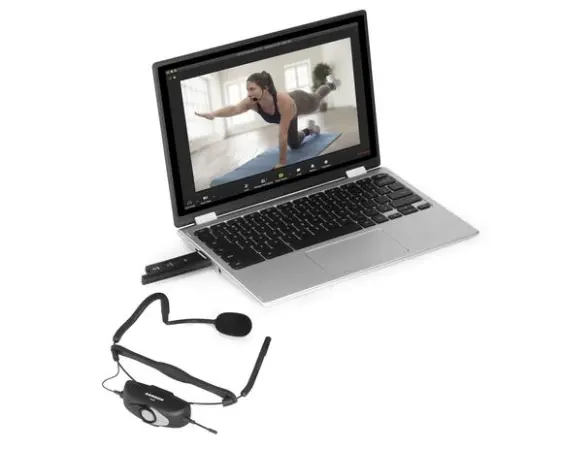

Plug-and-play operation with Mac and Windows
Works with iOS devices using Apple's Lightning to USB Camera Adapter (not included)

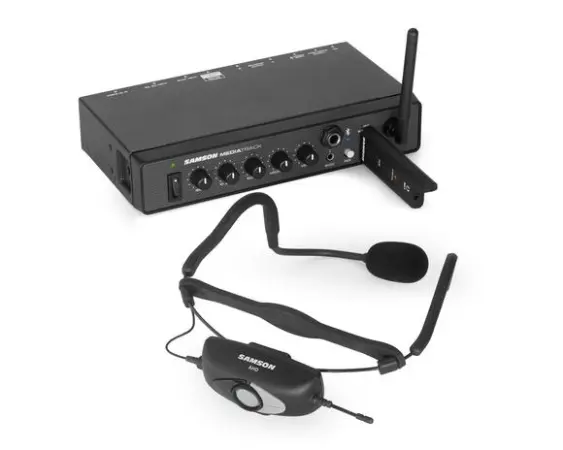

Compatible with Samson Expedition Series Portable PA systems that have USB wireless ports
Includes USB extension cable and USB-A to USB-C adapter
Qe Headset Microphone
The AirLine XD USB Fitness Headset system feature a Qe headset microphone, specifically designed for fitness instructors and high-energy performers. This lightweight headset uses a double ear design with cushion band for a comfortable and secure fit. The metal gooseneck includes a condenser microphone with a sweat-resistant capsule that prevents corrosion from exposure to moisture and sweat, which is expected in a fitness setting. The Qe condenser capsule has a bidirectional pickup pattern that reduces background noise and isolates the performer's voice for excellent, crystal clear sound.

SPECIFICATIONS:

System
Wireless Technology Digital 2.4 GHz
Number of RF Channel Frequencies 1
Included Transmitters 1 x Headworn with Microphone
Diversity Non-Diversity
RF Bandwidth 2.4 GHz
RF Channel Scanning Auto-Scan
Max Operating Range 100' / 30.5 m (Line of Sight)
Max Transmitters per Band 1
Built-In Recorder No
Timecode Support No
OS Compatibility Windows
macOS
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Encryption None
Receiver
Receiver Type USB Stick
Antenna Internal
Number of Audio Channels 2
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Headphone Output
Audio Output Level 9 dBu
Phantom Power Protection None
Network I/O None
USB/Lightning Connectivity 1 x USB-A Male (USB 2.0, Audio, Bus Power)
Impedance Headphone Output:
16 Ohms
32 Ohms
Power Requirements Bus Power (USB)
DC Input Power 5 VDC (USB Bus Power)
Display & Indicators 1 x LED (Power, Sync)
Dimensions 0.9 x 0.3 x 3.5" / 2.3 x 0.8 x 8.9 cm
Weight 0.4 oz / 10 g
Transmitter
Transmitter Type Headworn with Microphone
RF Output Power Not Specified by Manufacturer
Audio I/O None
Pad None
Muting None
Auto-Level Control No
Signal Processing None
Sync Method Proprietary
Power Requirements Battery
Battery Type 1 x Built-In Rechargeable
Approx. Battery Life 6 Hours
USB/Lightning I/O 1 x Micro-USB (2.0, Bus Power, Charging)
Display & Indicators None
Microphone
Microphone Type Headset
Color Black
Sound Field Mono
Operating Principle Pressure Gradient
Capsule Condenser
Polar Pattern Figure-8

Samson Tech AirLine-XD (Samson USB Fitness Headset System (2.4 GHz))
