Samson AWX Wind Instrument System
Band D: 542–566 MHz
You Are Now Free to Roam About the Stage.
Samson's AWX Wind Instrument system offers frequency-agile UHF wireless freedom via the world's smallest clip-on transmitter, which places high definition sound, an internal rechargeable battery, and 300' of reliable performance in a device that fits in the palm of your hand. It also features a shockmounted microphone and adjustable gooseneck ideal for saxophones, trumpets, trombones and other wind instruments.
ATX-tend Your Reach
The AWX system continues Samson's longstanding commitment to wireless innovation. Designed to be an extension of your instrument rather than a separate component, the ATX Wireless Transmitter clips directly to your instrument bell with no cable necessary and lets you rule the stage with confidence. It provides infrared sync to wirelessly match the receiver and transmitter frequency, easily accessible Gain and Mute controls, a battery life LED indicator and an 8-hour rechargeable lithium-ion battery.
Mic the Wind
The ATX transmitter features a HM60 condenser microphone with 3-point halo isolation mount to minimize any noise caused by mechanical vibration. The mic capsule offers a supercardioid pickup pattern that handles up to 125dB SPL, ideal for handling the sudden attack of wind instruments. The HM60 also offers an 8.5" adjustable gooseneck (with P3 connector) for optimal mic placement in front of your instrument’s bell.
Offering frequency-agile operation, the system's rack mountable CR99 Wireless Receiver provides 80 selectable channels for reliable performance no matter where you are. The receiver's True RF Diversity design minimizes dropouts, while tone key technology prevents unwanted noise when your transmitter is off or out of range.

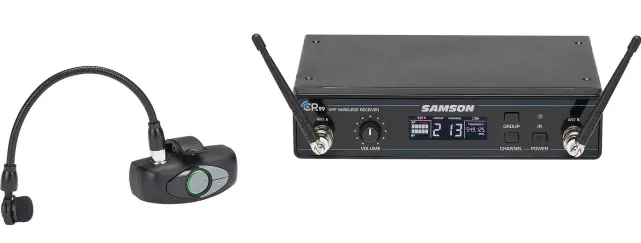

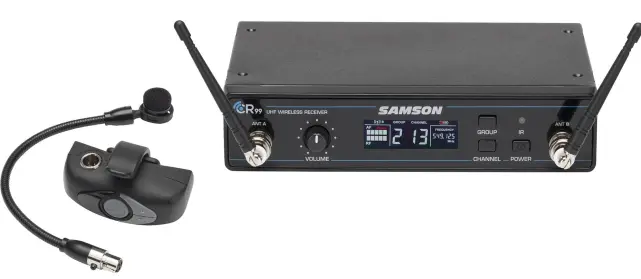

AWX Wind Instrument System
Frequency-agile UHF wireless system
80 operating channels across 24MHz bandwidth
Up to eight simultaneous systems per frequency band (region dependent)

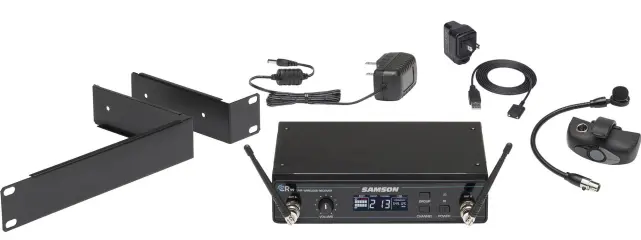

AC adapter and rackmount kit included
CR99 Wireless Receiver
Rugged all-metal, rack mountable chassis
Multifunctional backlit LCD (RF, audio, transmitter battery levels)
Group scan for easy single or multi-system setup
IR sync wirelessly matches receiver and transmitter frequency
True RF Diversity design minimizes dropouts
Tone key prevents unwanted noise when transmitter is off/out of range
Removable 1/4-wave antennas
Balanced XLR and 1/4" outputs

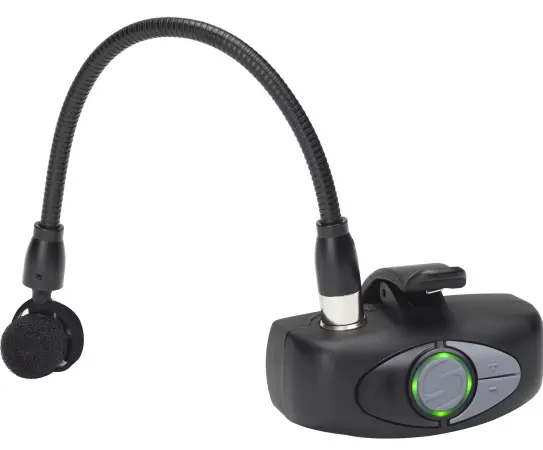

ATX Wireless Transmitter

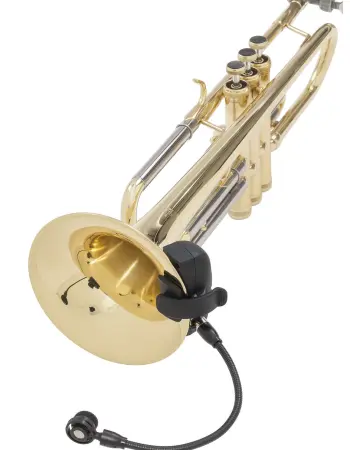

Clips directly to instrument bell (no beltpack or cable required)
HM60 condenser microphone capsule with supercardioid pickup pattern
Handles up to 125dB SPL
3-point halo isolation mount

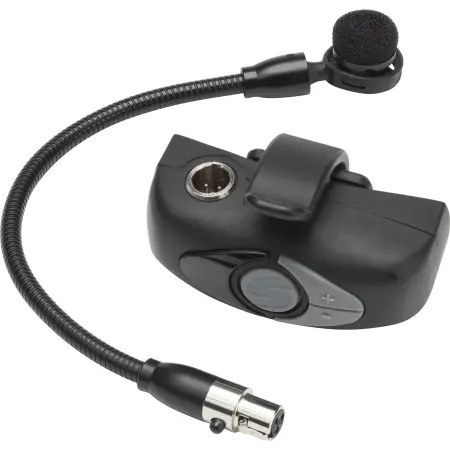

8.5" gooseneck (P3 connector) for optimal mic placement
Up to eight hours of battery life using built-in rechargeable lithium-ion battery

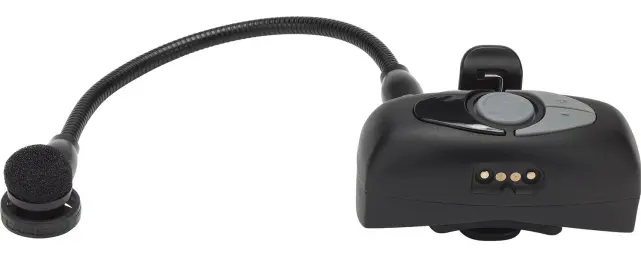

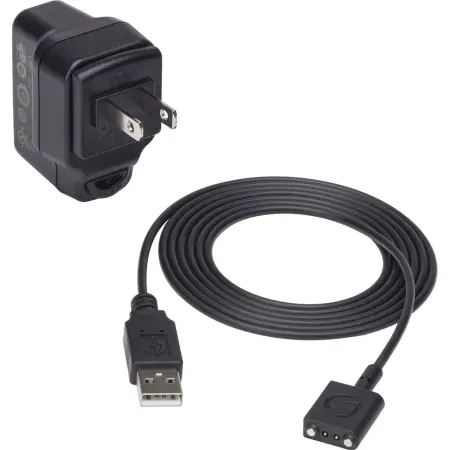

Sealed gold contact charging connector for included USB-style charger
Low battery LED indicator
300' operating range (line-of-sight)
Variable Gain control
