Stage 412 E Band: 174 MHz–198MHz

Four, Score!

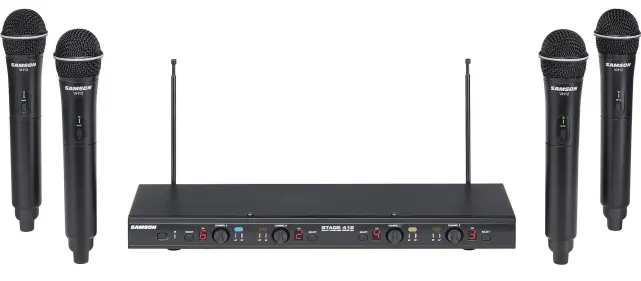

The Samson Stage 412 is a frequency-agile, quad-channel wireless microphone system with four handheld dynamic microphones that transmit to a single rugged metal receiver. Each handheld features Samson's Q6 dynamic mic element, providing crisp, clear sound and reliable VHF wireless performance for presentation, education, house of worship, karaoke and other applications with up to four performers.

Simple Setup

Samson has been dedicated to driving wireless innovation, always striving to make it easier for performers everywhere to cut the cord. The Stage 412's frequency-agile design offers four channels with six operating frequencies per channel across a 173MHz–198MHz frequency range to choose from. In addition, the system's IR sync function allows users to wirelessly match each transmitter to a receiver channel's operating frequency in no time. A 200' operating range provides ample freedom for any presenter or performing group, while each mic transmitter provides exceptional battery life of up to 10 hours via two AA batteries (not included).

Versatile Performance

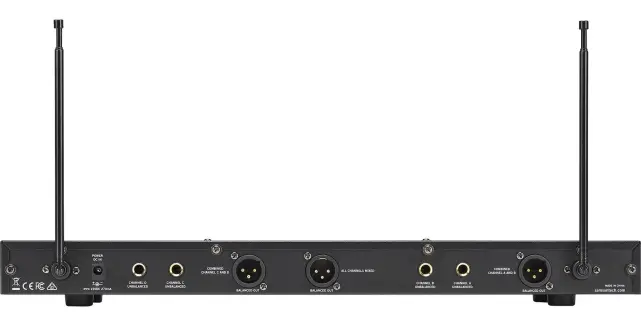

Featuring the rugged metal SR412 receiver, the Stage 412 is designed for maximum durability and versatility. Its back panel provides four 1/4" outputs, as well as three balanced XLR outputs, allowing connection to a mixer or powered PA speaker. The 1/4" outputs send each channel separately, while the XLR outs are dedicated to send single output mixes of Channels A/B, Channels C/D and all four. Front panel volume control on each channel lets you find the perfect blend between each performer.

VHF Operation

The Stage 412 operates in the reliable VHF frequency spectrum, which has become significantly less crowded with the advancement of digital TV. And it's free from the upcoming FCC 600MHz transition.


Features:

Quad-channel VHF (173MHz–198MHz) wireless system
Six operating frequencies per channel
Up to three simultaneous systems (region dependent)
IR sync wirelessly matches receiver and transmitter frequency
200' (60m) operating range (line-of-sight)
AC adapter included

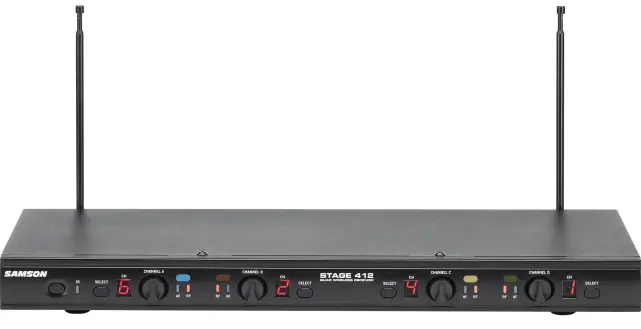

SR412 Wireless Receiver

Rugged metal chassis
Dedicated Volume controls for each channel
Four 1/4" independent channel outputs
Three balanced XLR mixed outputs

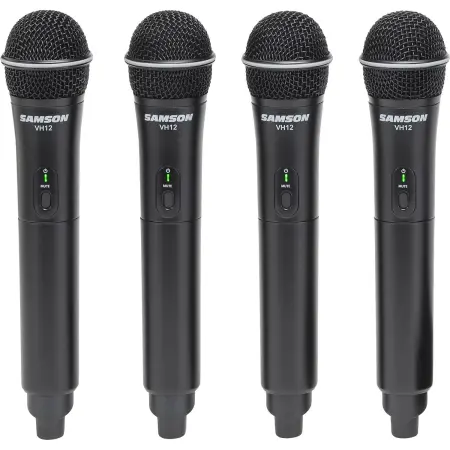

VH12 Handheld Transmitters

Four Q6 Dynamic Microphone capsules
Each offers up to 10 hours of operation via two AA batteries (not included)

Specifications:

Operating Frequency: VHF 173MHz–198MHz
Microphone Channels: 4
Frequencies per Channel:  6
Operating Range: 200' (60m)
Frequency Response: 80Hz–15kHz
Tone Key Frequency: 30kHz

SR412 Wireless Receiver

Dynamic Range: 100dB
Maximum Output: 1.37V
Output Connectors: Two 1/4" (6.3 mm) unbalanced, three XLR balanced
Audio Output Levels: -12dB
Power Supply: 100-240V, 50/60Hz, 0.4A, Output: DC 15V, 800mA
Dimensions: 17" x 6.75" x 1.5"  (430mm x 170mm x 40mm)
Weight: 3.08lb (1.4kg)

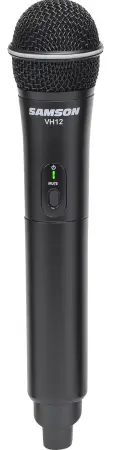

VH12 Handheld Transmitters

Microphone Element: Q6 Dynamic
Pickup Patter: Cardiod
RF Power Output: 10mW
Typical Battery Life: 10 hours
Current Consumption: 120 mA typical
Dimensions (each): ø2.16" x 10" (ø55mm x 255mm)
Weight (each): 0.48lb (0.22kg)

Samson Stage 412 (Samson SWS412HH-E)
