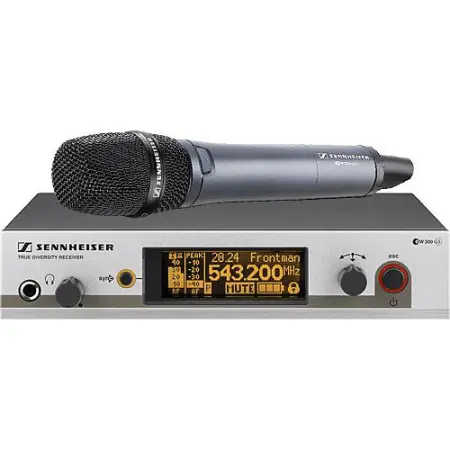

Sennheiser EW 365 G3
Band A: 516 to 558 MHz

The best that the G3 300 series has to offer for the voice: top-notch condenser technology coupled with a true diversity receiver. This system captures every last nuance and detail of the vocalist. A programmable mute button on the microphone lets the user decide when it is time to go "on-air."


Features:

Sturdy metal housing (transmitter and receiver)
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 24 compatible frequencies
Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of transmitter parameter from receiver
User-friendly menu operation with more control options
Illuminated graphic display, receiver also shows transmitter settings
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter feature battery indicatation in 4 steps, also shown on receiver display
Programmable Mute button on transmitter body
Easy-exchangeable microphone modules from evolution series
Integrated Equalizer and Soundcheck mode
Contacts for recharging BA 2015 accupack directly in the transmitter
Wide range of accessories adapts the system to any requirement

Specifications:

Type of System True diversity UHF wireless handheld mic system
RF Carrier Frequency Range A: 516 to 558 MHz
Approx. Working Range Not specified by manufacturer
Overall Frequency Response 25 Hz - 18 kHz
Signal-to-Noise Ratio >115 dBA
# Of Channels 1680
20 channel banks, 6 fixed banks, 24 factory preset channels each
# Of Simultaneous Systems Not specified by manufacturer

Receiver
Type of Receiver EM300 half-rack mountable true diversity UHF
Type of Outputs Balanced XLR
Unbalanced 1/4" (6.3 mm)
Headphone Monitoring 1/4" (6.3 mm) (front panel)
Power Requirements 12 VDC
Display Back-lit LCD display
Mounting Options GA 3 rack-mount kit
Antenna Type 2 x BNC, 50 Ohms
Dimensions 7.95 x 8.35 x 1.69" (202 x 212 x 43 mm)
Weight 2.16 lb (980 g)

Transmitter
Type of Transmitter SKM300-865 handheld transmitter
Type of Microphone E865
Polar Pattern Supercardioid
Interchangeable Mic Heads No
Battery Type/Approx. Life 2 x AA 1.5 V batteries (8 hours typical)
Mute Switch Programmable mute function
Level Control No
Antenna Type 1/4 Wave Integral
Display Back-Lit LCD

Dimensions (LxDiameter) 10.4 x 2" (265 x 50 mm)
Weight 15.9 oz (450 g)


Includes:
1 EM 300 G3 rack-mount receiver
1 SKM 300-865 G3 handheld transmitter (super-cardioid, condenser)
1 MZQ 1 microphone clip
1 GA 3 rack mount
1 NT 2 power supply unit
2 antennas
2 AA size batteries
Operating instructions

Sennheiser EW365G3 (Sennheiser Ew365-G3)
