Sennheiser EW D1-845S

Sennheiser Evolution Wireless D1 Series Digital Handheld Microphone System with e845 Capsule

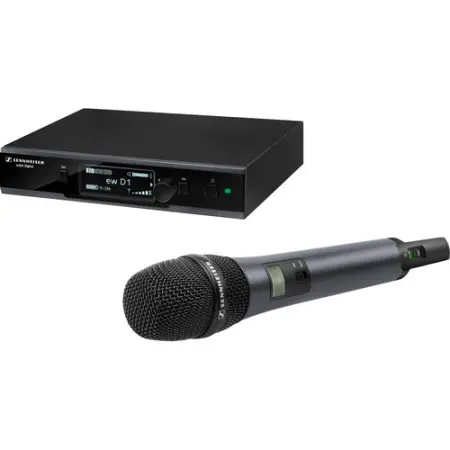

The Sennheiser EW D1-845-S is an Evolution Wireless D1 Series digital wireless handheld microphone system that includes an e845 supercardioid capsule attached to an SKM-D1 handheld transmitter, which also features a mute switch for stage use.

The Sennheiser Evolution Wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. EW D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

Order the Sennheiser EW D1-845-S Evolution Wireless D1 for your next event today.

Sennheiser EW D1-845-S Includes:

EM-D1 rackmount receiver
SKM-D1 handheld transmitter with e845 supercardioid capsule
MZQ microphone clamp
NT-12 power supply
Transport case
User manual

Sennheiser EW D1-845-S Features:

Includes e845 capsule, interchangeable with other Evolution series capsules (sold separately)
Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
Automatic frequency management
Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
Audio effects: equalizer, de-esser, automatic gain control
iOS & Android app for remote control and monitoring of the system
Sturdy metal housing

Sennheiser EW D1-84-S Specifications:

Overall System:
Frequency Response:  20 Hz - 20 kHz
Dynamic Range:  > 135 dB (A)
THD, Total Harmonic Distortion:  typ. < 0,1 %
Audio Sampling:  24 bit/48 kHz
Signal-to-Noise Ratio:  >/= 105 dB (A)
RF Frequency Range:  2,400 to 2,483.5 MHz
Modulation:  GFSK with back channel
Transmission Method:  TDMA, time diversity, frequency diversity, fast switching antenna diversity
Latency:  3.9 ms
Audio Codec:  APT-X Live
Operating Temperature:  – 10 °C to +55 °C
Storage Temperature:  – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)

EM-D1 Receiver:

Latency:  Multi-frequency targets
RF Sensitivity:  <-90 dBm
RF Output Power:  Back channel 10 mW/100 mW (country-specific)
Audio Output:  Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
Low-Cut Filter:  –3 dB at 120 Hz
Equalizer:  7-band graphic equalizer
Automatic Gain Control (AGC):  Compression/expansion with automatic make-up gain function
Display:  OLED
Connection:  XLR-1/4" (6.3 mm) jack
Antenna Connector:  2 x Rev-SMA
Network Socket:  RJ45
Network Protocol:  Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6
Power Supply:  12 V DC hollow jack
Current Consumption:  350 mA
Weight:  approx. 824 g

SKM1 Handheld Transmitter:

Frequency Response:  50 Hz - 20 kHz
RF Output Power:  Adaptive, up to 100 mW (country-specific)
Display:  LCD
Weight:  approx. 280 g incl. microphone head
Input Sensitivity:  Automatic sensitivity adjustment
Battery Specification:  2x AA size battery (1.5 V), Operating time: typ. 6 h
Accupack:  BA 10 (Li-Ion, 3.7 V), Operating time: typ. 11 h (optional accessory)

Sennheiser EWD1-845S (Sennheiser evolution wireless d1 845s)
