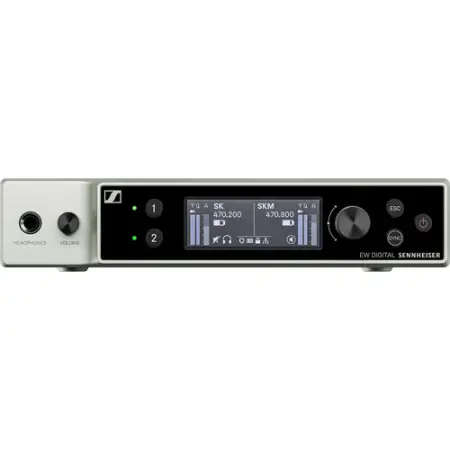

The Sennheiser EW-DX EM 2 is a half-rack, dual-channel digital wireless receiver compatible with EW-DX SK bodypack, EW-DX SKM handheld, and EW-DX TS tabletop transmitters. Housed in a rugged, all-metal chassis built to withstand the rigors of professional use, it can either sit on a tabletop or be rackmounted (with the included rackmount set) for portable rigs and permanent A/V installs.

The wide 80 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX EM 2 receiver is backward-compatible with EW-D components.

Reliable Wireless Performance with More Channels via Link Density Mode
The EW-DX EM 2 operates in the UHF band, far away from potential Wi-Fi interference in the 2.4 GHz band.
The UHF transmission greatly enhances range (up to 330') and the wide 80 MHz bandwidth gives you the ability to find a clean channel from 3200 available frequencies.
Intelligent Switching Diversity offers effective protection against multipath and other anomalies that cause RF interference. The system compares incoming signals on two independent antennas and receiver circuits to ensure optimal wireless quality. The receiver switches between antennas only during header data as to never affect the audio information.
Sennheiser's equidistant tuning grid removes the need for frequency coordination and enables you to operate up to 134 mic channels simultaneously.
For complex systems requiring even more mics, engage the Link Density mode for up to 269 channels on the same system.
AES-256 encryption keeps your transmissions private and safely protected from unauthorized users.

SPECIFICATIONS:

Wireless Technology Digital UHF
Number of RF Channel Frequencies 3200
Diversity Intelligent Switching Diversity
RF Frequency Band Q1-9: 470.2 to 550 MHz
RF Bandwidth 80 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m (Line of Sight)
Max Transmitters per Band 269
Mobile App Compatible Yes: Android & iOS
*As of September, 2022: Check with manufacturer for the most up-to-date compatibility
Bluetooth 5.1 LE
Bluetooth Operating Distance 120' / 36.6 m (Transmitter Sync, App Control)
Latency 1.9 ms
Receiver
Receiver Type Tabletop / Rackmount
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave Rod, BNC (Rear-Mount)
Number of Audio Channels 2
Audio I/O 2 x XLR 3-Pin Male Balanced Output
2 x 1/4" TS Female Unbalanced Output
Audio Output Level +18 dBu (Max)
+12 dBu (Max)
Frequency Response 20 Hz to 20 kHz +3 dB
Network I/O 1 x RJ45
Network Protocols TCP IPv4, TCP IPv6
Word Clock I/O None
USB/Lightning Connectivity None
Standalone Audio Interface Capable No
RF Output Power 10 mW (EIRP)
Power Requirements AC/DC Power Adapter, PoE
AC/DC Power Adapter 11 to 13 VDC (Included)
DC Input Power 12 VDC
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 5 to 95%
Dimensions 8.3 x 1.7 x 7.4" / 212 x 44 x 189 mm
Weight 2.2 lb / 1 kg (without Antenna)
Packaging Info
Package Weight 5.99 lb
Box Dimensions (LxWxH) 16 x 14.6 x 2.9"

SENNHEISER EW-DX EM2 (Q1-9) (Sennheiser Two-Channel Digital Rackmount Receiver (Q1-9: 470 to 550 MHz))
