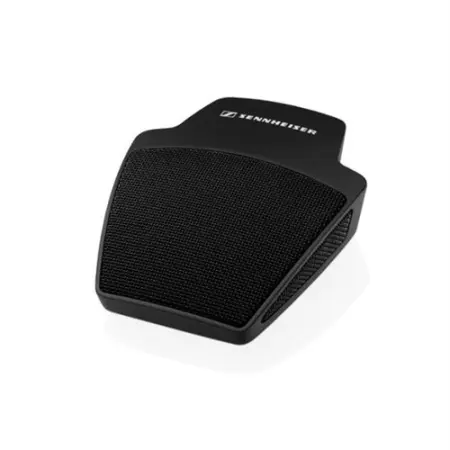

The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.

FEATURES:

Award winning design
Optimized for speech
Convenient usage

SPECIFICATIONS:


Dimensions 85 x 100 x 25 mm (WxDxH)
Connector tiny XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = −
Frequency response 40 Hz – 20 kHz
Max. sound pressure level 140 dB
Transducer principle pre-polarized condenser microphone
Weight 291 g
Pick-up pattern cardioid
Nominal impedance 200 Ω
Phantom powering P 24 - P 48
Operating temperature -10 °C - +50 °C
Equivalent noise level 29 dB (A)
Equivalent noise level weighted as per CCIR 468-3 39 dB (CCIR)
Current consumption 1.5 mA
Acoustics boundary layer microphone
Dynamic range 111 dB (A)
Sensitivity 10 mV/Pa

SENNHEISER MEB114B (Sennheiser MEB 114-B)
