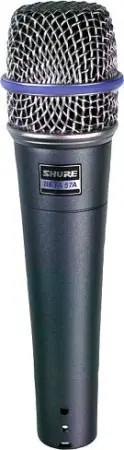

The Shure BETA 57A is a high output supercardioid dynamic microphone designed for professional sound reinforcement and project studio recording. It maintains a true supercardioid pattern throughout its frequency range. This ensures high gain before feedback, maximum isolation from other sound sources, and minimum off-axis tone coloration. A completely new grille design lets you take better advantage of proximity effect.
The BETA 57A is an exceptionally versatile microphone. Typical applications include drums, guitar amplifiers, brass, woodwinds, and vocals.
Technical Info
Type: Dynamic (moving coil)
Frequency Response: 50 to 16,000 Hz
Polar Pattern: Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency
Impedance: Rated at 150 _ (290 _ actual) for connection to microphone inputs rated low Z
Output Level (at 1,000 Hz)
Open Circuit Voltage: ?71 dB*(0.28 mV)*0 dB = 1 v/_bar Hum Pickup (at 60 Hz)
Maximum 15.0 mV in 10 oe field
Maximum 26.5 dB equivalent SPL per 1 moe
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector: 3-pin professional audio connector (male XLR)
Case: Silver Blue enamel-painted die-cast metal with hardened, matte-finished steel mesh grille
Swivel Adapter: Slip-in, adjustable through 180�, with standard 5/8"-27 thread
Net Weight: 272 g (9.71 oz.)
