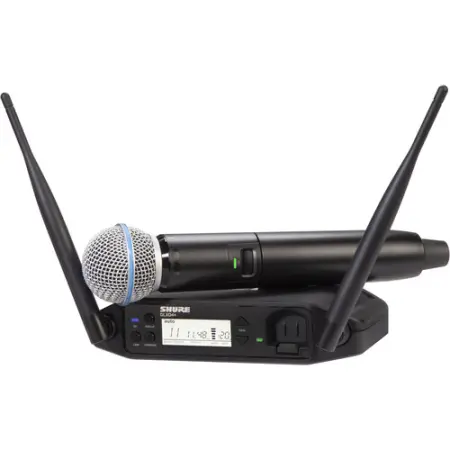

Dependable Wireless Audio that Anyone Can Use
The Shure GLXD24+ is a digital wireless handheld microphone system that offers reliability and outstanding sound quality in a package that's simple to use, even if you've never operated a wireless system before. Shure's next-generation technology handles the set up for you, automatically scanning both the 2.4 and 5.8 GHz frequency ranges to seek out the best possible digital transmission channel to ensure dependable performance for your presentations, performances, conferences, and events at a typical range of up to 100' indoors and 65' outside.

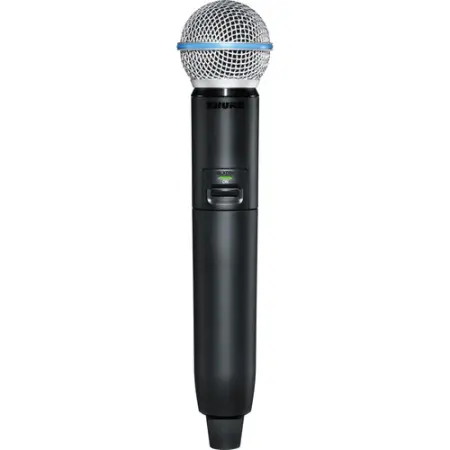

Handheld Transmitter with BETA 58 Microphone

This version of the GLXD24+ is configured with a handheld transmitter equipped with a BETA 58A microphone.
Ideal for live stage environments, the mic's frequency response features a bass roll off and enhanced midrange presence for optimal reproduction of vocals and speech.
Its dynamic capsule utilizes a neodymium magnet for high signal-to-noise levels and is shockmounted to reduce handling noise. The supercardioid polar pattern focuses audio capture very tightly on the vocalist, helping to reduce feedback issues when sound reinforcement equipment is used.
A dent-resistant steel mesh grille and enamel coated die-cast metal construction resist wear and abuse, while the effective built-in pop filter reduces undesirable wind and breath noise.

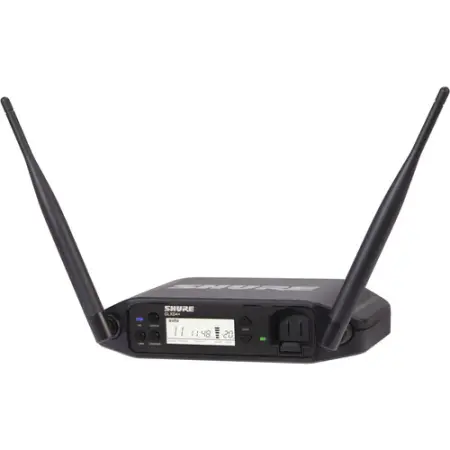

Portable Tabletop Receiver

This configuration includes a portable tabletop receiver made from durable ABS plastic with front-panel charging for the SB904 battery and an easy-to-read display that shows pertinent information.
The system transmits audio with a flat, 20 Hz to 20 kHz frequency response and 120 dB of dynamic range, leaving the sound of your mic unaffected by the wireless components.
The transmitter's input gain can be wirelessly adjusted right from the receiver's front panel to optimize the audio signal.
The rear panel provides a balanced XLR output switchable between mic and line levels along with a balanced 1/4" Inst/Aux output.
Reliable Dual-Band Technology

GLX-D+ Dual-Band Digital Wireless systems operate in both the 2.4 and 5.8 GHz frequency ranges, automatically scanning both to select the one that offers the higher number of clean channels.
The previous GLX-D only worked in the 2.4 GHz range, which offers 83.5 MHz of bandwidth. By expanding into the 5.8 GHz range, the GLX-D+ provides an additional 125 MHz worth of potential open frequencies for available channels, helping to minimize dropouts and enhance reliability.

The system offers true digital diversity, which means two antennas and two independent receiver modules work together to reduce RF signal dropouts.

In addition to the main transmission frequency, the GLX-D+ is constantly monitoring 2 extra "backup frequencies”, so if the system detects interference, it will switch to one of the backups automatically without the user even knowing.
Besides the additional spectrum, there are other benefits to in operating in the 5.8 GHz range. In general, there are fewer devices operating in this range, making the spectrum cleaner. The 2.4 GHz range is home for Bluetooth devices and other devices, including Wi-Fi routers and repeaters, security cameras, baby monitors, garage door openers, and more. Operating in this range means competing with these devices for the same space.

GLX-D+ receivers typically allow you to run up to 4 mics simultaneously in the same space. Under ideal conditions, up to 8 systems can be used.

If you need more mics at once, consider a system with the GLXDR+ half-rack receiver, which offers removable antennas and can accommodate the GLXD+FM Frequency Manager (available separately). The frequency manager allows up to 11 mics to operate simultaneously (16 under highly optimal conditions) making it ideal for installations with multiple wireless systems.
Intelligent Battery Rechargeability

The GLXD2+ handheld transmitter runs on an intelligent SB904 rechargeable lithium-ion battery (included).
The battery provides up to 12 hours of continuous use on a full charge.
The transmitter automatically powers off after approximately 1 hour to conserve battery life if the signal from a linked receiver is not detected.

The SB904 battery can be recharged in the GLXDR4+ receiver's charging bay (located on the front panel). The charging bay can also be used to recharge a spare battery while the transmitter is in use.
Alternately, the SB904 can be recharged while in the handheld transmitter with a USB charging cable.
Just a 15-minute quick charge provides 1.5 hours of use.
The SB904's remaining battery life is displayed in hours and minutes from the receiver's front panel.

FEATURES:

For Performers & Presenters
Handheld Microphone Transmitter
Supercardioid Dynamic Mic Capsule
Portable Tabletop Receiver
Auto Scans 2.4 and 5.8 GHz Frequencies
Easy Setup with Auto Pairing
208.5 MHz Total Bandwidth
Fixed Front-Panel Antennas
Front Panel Charges 12-Hr SB904 Battery
Expandable to 4 Mic Channels/100' Range

SPECIFICATIONS:

Wireless Technology
Digital 2.4 GHz/5.8 GHz
Included Transmitters
1x Handheld
Diversity
True Digital Diversity
Max Operating Range
100' / 30.5 m (Line of Sight)
Receiver Type
Tabletop
Microphone Type
Handheld
Polar Pattern
Supercardioid
System
Wireless Technology
Digital 2.4 GHz/5.8 GHz
Included Transmitters
1x Handheld
Diversity
True Digital Diversity
RF Frequency Band
Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth
208.5 MHz
RF Channel Scanning
Auto-Scan
Max Operating Range
100' / 30.5 m (Line of Sight)
Max Transmitters per Band
8
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
No
Latency
4.5 to 8 ms
Dynamic Range
120 dBA
Encryption
No
Modulation
Proprietary
Receiver
Receiver Type
Tabletop
Antenna
2x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels
1
Audio I/O
1x XLR 3-Pin Male Balanced Mic/Line Output
1x 1/4" TRS Female Balanced Output
Audio Output Level
XLR Output:
+1 dBV
1/4" Output:
+8.5 dBV
Phantom Power Protection
On 1/4", XLR Outputs
Frequency Response
20 Hz to 20 kHz (Dependent on Mic)
Network I/O
No
Word Clock I/O
No
USB/Lightning Connectivity
1x USB-C Female (Firmware Update)
Impedance
XLR Output:
100 Ohms (Balanced)
1/4" Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
RF Output Power
10 mW (EIRP, Max)
Spurious
Rejection: >35 dB
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
14.5 to 17 VDC at 600 mA (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Display & Indicators
1x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing
ABS
Operating Temperature
32 to 113°F / 0 to 45°C
Dimensions
7.2 x 1.6 x 4.8" / 183 x 40 x 122 mm
Weight
10.9 oz / 310 g
Transmitter
Transmitter Type
Handheld
RF Output Power
10 mW (EIRP)
Audio I/O
No
Pad
No
Muting
Off/On Switch
Auto-Level Control
No
Gain Range
-20 to +40 dB (1 dB Steps)
Sync Method
Proprietary
Antenna
1x External, Fixed (Handheld)
Power Requirements
Battery
Battery Type
1x Shure SB904 (Included, Replaceable)
Internal Battery Capacity
2420 mAh
Battery Charging Time
.25 to 3 Hours
Approx. Battery Life
12 Hours (Lithium Rechargeable)
USB/Lightning I/O
1x USB-C (Charging)
Display & Indicators
1x LED (Battery Status, Sync)
Housing
Metal, Plastic
Dimensions
2 x 9.7 x 1.5" / 51 x 246 x 37 mm
Weight
7.9 oz / 225 g (without Batteries)
Microphone
Microphone Type
Handheld
Color
Black
Sound Field
Mono
Capsule
Dynamic
Polar Pattern
Supercardioid
Frequency Range
50 Hz to 16 kHz
Impedance
290 Ohms
Sensitivity
-51.5 dBV/Pa
Packaging Info
Package Weight
4.555 lb
Box Dimensions (LxWxH)
18.7 x 12.9 x 4.3"

SHURE GLXD24+/B58 (Shure GLXD24+/B58 (Z3: 2.4, 5.8 GHz))
