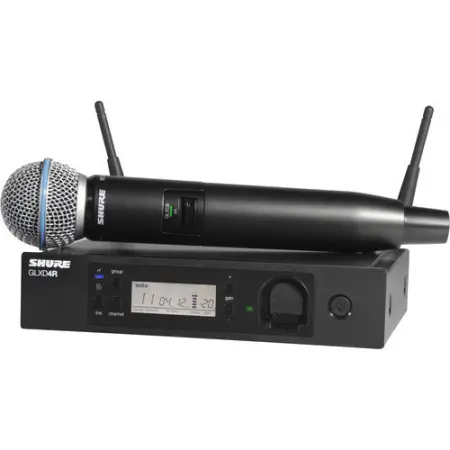

Shure GLXD24R/B58

$649.00 new
Description Q&A: 0 Reviews: 0 Financing
or $59/mo $0 Shipping, $0 Tax


Available - Ships in 1-2 days Low Price Guarantee


or $ 59/mo $0 Shipping, $0 Tax
User Reviews

Read all reviews
Product Description
Handheld Wireless System
New Product — Features BETA®58A handheld vocal microphone and GLXD4R rack mount receiver.

The GLXD24R/B58 Handheld Wireless System is part of the GLX-D Advanced wireless systems family.

GLXD24R/B58 provides intelligent battery rechargeability, robust RF performance, automatic frequency management and increased channel count with exceptional digital audio clarity and seamless operation. The precision-engineered BETA 58A vocal microphone capsule is optimized for lead vocal performance. For use with GLX-D® Advanced Frequency Managers (UA846Z2).

Includes GLXD4R rack mount receiver, GLXD2/BETA58 handheld transmitter with integrated BETA 58A supercardioid dynamic microphone capsule, microphone clip, SB902 rechargeable lithium-ion battery, USB charge cable, 2 detachable antennas, rack mount hardware, and user guide.

2.4 GHz Frequency Band
GLXD4R Wireless Receiver
GLXD2/Beta 58A Handheld Transmitter
Includes SB902 Rechargeable Battery
Microphone Clip
2 Detachable Antennas
USB Charging Cable
Rackmount Hardware
Power Supply


RF Power Output 10 mW E.I.R.P, maximum
Maximum Input Level 147 dB SPL
Power Requirement 3.7 V Rechargeable Li-Ion
Battery Life Up to 16 hours
Operating Range Indoors: Up to 100' (30 m) typical, with a maximum of 200' (60m)
Outdoors: Up to 65' (20 m) typical, with a maximum of 165' (50 m)
Housing Molded plastic
Dimensions Body Length: 9.9" (252 mm)
Body Width: 1.5" (37 mm)
Capsule Width: 2" (51 mm)
Weight 7.8 oz (221 g), without batteries
Type Dynamic (Moving Coil)
Frequency Response 50 Hz to 16 kHz
Polar Pattern Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency
Output Level Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV) *1 Pa = 94 dB SPL
Packaging Info
Box Dimensions (LxWxH) 11.1 x 5.3 x 3.3"
GLX-D Digital Wireless Multi-System Receiver
Configuration XLR Output: Balanced
1/4" / 6.35 mm Output: Impedance balanced
Impedance XLR Output: 100 Ohms
1/4" / 6.35 mm Output: 100 Ohms (50 Ohms, unbalanced)
Full Scale Output XLR Connector:
Line Setting: +18 dBV
Mic Setting: -12 dBV
1/4" / 6.35 mm Output: +12 dBV
Pin Assignments XLR Output: 1=ground, 2=hot, 3=cold
1/4" / 6.35 mm Connector: Tip=audio, Ring=no audio, Sleeve=ground
Mic/Line Switch 30 dB pad
Spurious Rejection >35 dB, typical
Gain Range -18 to 42 dB in 1 dB steps
Phantom Power Protection Yes
Receiver Antenna Input
Impedance 50 Ohms
Antenna Type 1/2 Wave Sleeve Dipole
Maximum Input Level -20 dBm
General Specifications
Housing Steel
Power Power Requirements: 14 to 18 VDC (Tip positive with respect to ring), 550 mA
Dimensions (H x W x D) 1.7 x 7.8 x 6.4" / 42.0 x 197.0 x 163.0 mm
Weight 32.0 oz / 907.2 g
Packaging Info
Box Dimensions (LxWxH) 18.3 x 14.8 x 4.3"
