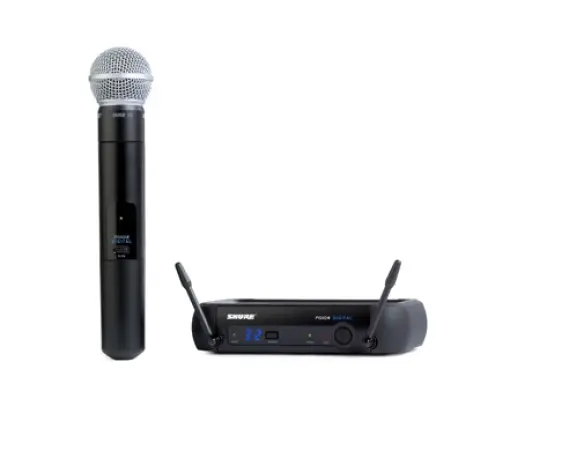

Shure PGXD24/SM58 (Shure PGXD24-SM58)
Handheld Wireless System
Wireless Systems Family
PGXD2 Handheld transmitter with choice of microphone cartridge.
PGXD4 24-Bit, 48 kHz digital audio technology for wireless that sounds like wired. Up to 5 compatible channels per frequency band.
PGX Digital Wireless, with state-of-the-art, 24-bit digital audio and trusted Shure microphones, delivers stunning sound and a strong, clean RF signal.
Includes PGXD4 receiver, PGXD2/SM58 handheld transmitter, clip, power supply, 2 AA batteries, carrying case, and user guide.
PGX Digital Wireless
Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state-of-the-art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.
Shure PGXD24SM58 Digital Wireless Handheld System w/SM58 Microphone
•24-bit / 48kHz digital technology for incredibly accurate sound
•Shure microphones trusted by musicians for over 80 years
•Scan and sync instantly and automatically sets up the system
•Up to 10 hours of continuous use from 2 AA batteries
•Up to 200 ft (~60m) range for total wireless freedom
•True digital diversity for a rock-solid wireless signal
•900 MHz operation free from TV signal interference
•Adjustable gain matches variable input levels
•Up to 5 systems can be used at once
•Rugged construction for reliable performance show after show
•Durable hard shell padded case gets your gear from gig to gig
Handheld Wireless System
Features SM58 Handheld Microphone
PGXD4 Wireless Receiver
PGXD2 Handheld Transmitter with SM58 Microphone Element
60 m (200 ft.) under typical conditions. Note: actual range depends on RF signal absorption, reflection and interference.
RF Carrier Range
X8: 902–928 MHz
X8A: 915–928 MHz
X8B: 902–907.5 MHz, 915–928 MHz
Note: varies by region
Audio Frequency Response (± 2dB)
PGXD1: 0 dB at minimum gain setting, 6.35 mm (1/4") connector
-12.5 dB at minimum gain setting, XLR output
PGXD2: -54.5 dBV/Pa at -10 dB gain setting, with SM58 cartridge, XLR output
Total Harmonic Distortion
<0.02%, A-weighted, typical (Ref. 1 kHz, 6 dB below input clip)
>108 dB A-weighted
Operating Temperature Range
-18°C (0°F) to +50°C (+122°F)
Note: battery characteristics may limit this range.
