Shure SLX4 (H5: 518 to 542 MHz)

$380.00 new
Reviews: 0 Description Financing Q&A: 0
or $35/mo $0 Shipping, $0 Tax



Backordered - Call for ETA
Low Price Guarantee



or $ 35/mo $0 Shipping, $0 Tax


Product Description

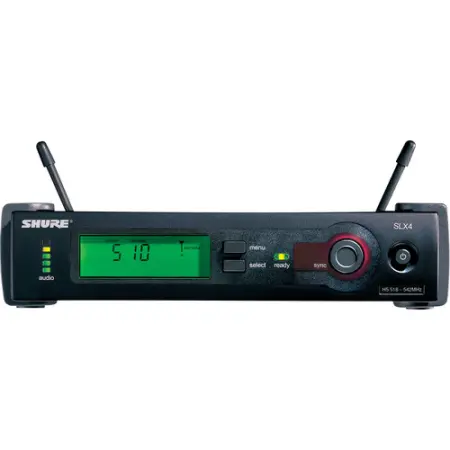

The Shure SLX4 is a single-channel rackmount wireless receiver housed in a rugged metal chassis. It is compatible with the SLX1 bodypack and SLX2 handheld transmitters as well as the MX690 boundary and MX890 desktop base transmitters. The receiver offers high-quality, reliable audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, theaters, or on musical stages.

Features:

Fast Setup and Dependable Performance
Auto-scan instantly locates a clear, interference-free channel for safe transmission
Predictive-diversity technology uses a microprocessor to switch antennas before dropouts occur, greatly improving reception
The receiver operates in a 24 MHz UHF tuning range with 960 selectable frequencies available
Allows for up to 12 wireless mics transmitting simultaneously in the same space
Automatically synchronize the frequency between the transmitter and the receiver via the easily accessible infrared (IR) port
Shure’s patented Audio Reference Companding delivers crystal-clear audio with a 45 Hz to 15 kHz frequency response
Detachable 1/4 wave antennas
Multifunction, backlit LCD showing group, channel, frequency, transmitter battery strength, and locked/unlocked status
The back panel houses a balanced XLR mic-level output as well as an unbalanced 1/4" instrument-level output
Volume control is located on the rear of the unit
Frequency and power lockout
Rugged metal construction
Includes rackmounting hardware

Specifications:

System
Wireless Transmission Analog UHF
Number of RF Channels 960
Diversity Antenna Diversity
RF Frequency Band H5: 518 to 542 MHz
RF Bandwidth 24 MHz
Frequency Step Size 25 kHz
Max Operating Range 328.1' / 100 m
Max Systems per Setup 12

Receiver
Form Factor Rackmount
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Mic Output (Lockable)
1 x 1/4" TRS Female Unbalanced Output
Gain Range 0 to -25 dB
Audio Output Level XLR Output:
-13 dBV (Mic Level)
1/4" Output:
-2 dBV (Instrument Level)
Frequency Response 45 Hz to 15 kHz ±2 dB
Impedance XLR Output:
200 Ohms (Balanced)
1/4" Output:
1 Kilohms (Unbalanced)
Approximate RF Sensitivity -105 dBm
Adjacent Channel Isolation >70 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 400 mA (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators 1 x Back-Lit LCD (Channel, Group, Transmitter Battery Status)
Housing Steel
Operating Temperature 0 to 122°F / -18 to 50°C
Dimensions 7.8 x 1.7 x 5.3" / 197 x 42 x 134 mm
Weight 1.8 lb / 816 g

Shure Professional SLX4 H5   ( Shure SLX4-H5 )
