Active Directional Antenna, 470-698 MHz

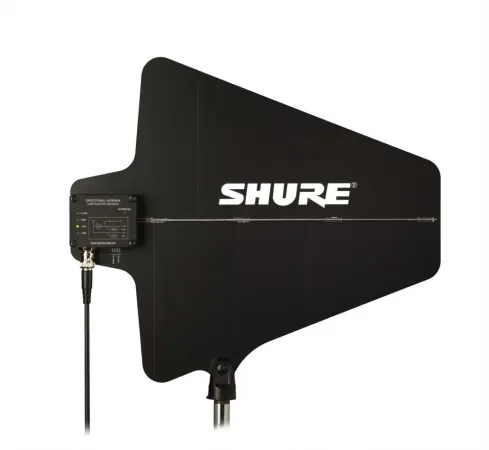

Experience improved wireless reception with the UA874. This UHF antenna uses a log periodic dipole array to produce a cardioid pattern toward the desired coverage area, achieving greater rejection of RF signals outside the area than standard ½ wave omnidirectional antennas.

An integrated amplifier with four gain settings compensates for varying degrees of coaxial cable signal loss.

The UA874 can be mounted on a mic stand with the integrated threaded adapter.

Features:

Compatible with all Shure wireless receivers and antenna distributionsystems that provide 12 V DC bias
Four-position gain selector switch
Low-noise signal amplifier that compensates for transmission loss incoaxial cable
Integrated threaded adapter that mounts easily to microphones stands
Legendary Shure build quality and reliability

Specifications:

Connector Type: BNC Female
Impedance: 50 Ohms
Power Requirements: 10 to 15 V DC bias from coaxial connection, 75 mA
Reception Pattern: 70 degrees
Third-order Intercept Point: >30 dBm
Antenna Gain (On Axis): 7.5 dBi
Signal Gain +/- 1dB: Switchable
-Active: +12 dB, +6 dB
- Passive: 0dB, -6 dB
RF Overload LED Threshold: -5 dBm
Dimensions: 316 mm x 359 mm x 36 mm (H x W x D)
Weight: 317 g (11.2 oz)

Shure UA-874US (Shure UA 874US)
