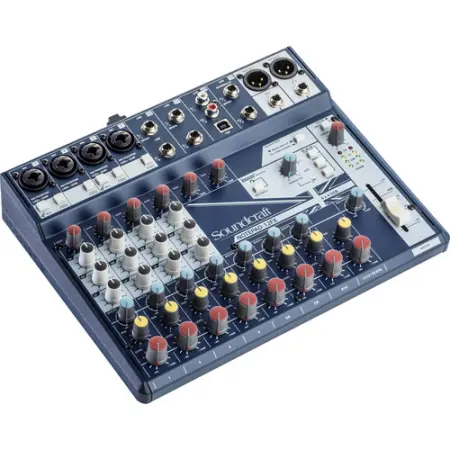

The Notepad-12FX from Soundcraft is a small-format, 12-channel analog mixing console with an integrated 4x4 USB audio interface and built-in Lexicon effects, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analog components such as four microphone preamps with combo XLR-1/4" inputs, 3-band EQ, and 100 Hz high-pass filters. Additionally, inputs 1 and 3 offer Hi-Z instrument inputs for incorporating guitars and other high-impedance instruments.

Channels 1-8 include gain/trim controls, and all channels feature an aux send, a pan knob, and level controls. Channels 5/6 and 7/8 feature 1/4" line-level inputs, while channels 9/10 include stereo RCA inputs. Channels 11/12 include 1/4" inputs and double as an external FX return for feeding an outboard effects processor. Outputs include Master L/R on XLR, a 1/4" aux send, and a dedicated 1/4" headphone output with selectable monitoring of the master bus or USB return 3/4. The on-board effects include delay with tap-tempo, reverb, chorus, and karaoke. The master section offers a master fader and four LED meters with -20, 0, +6 dB, and peak settings. The Notepad-12FX features a durable metal enclosure and ships with an external power supply.

Features:
Four Combo XLR-1/4" Mic/Line Inputs
Six 1/4" Line Inputs and Two RCA Inputs
4-In/4-Out USB Audio Interface
Lexicon FX with Delay, Reverb, & Chorus

Soundcraft Notepad Specs:
Inputs Mic/Line (Channels 1-4): 4 x combo XLR-1/4" / 6.35 mm
Line (Channels 5-6): 2 x 1/4" / 6.35 mm
Line (Channels 7-8): 2 x 1/4" / 6.35 mm
Line (Channels 9-10): 2 x RCA
Line / External FX (Channels 11-12): 1/4" / 6.35 mm
Outputs Master (L/R): 2 x XLR
Aux: 1 x 1/4" / 6.35 mm
Headphone: 1 x 1/4" / 6.35 mm
Controls Gain (Channels 1-4): 4 x Gain knobs
Trim (Channels 5/6 & 7/8): 2 x Trim knobs
Aux Send (Channels 1-4, 5/6, 7/8, 9/10): 7 x Aux/FX knobs
Pan (Channels 1-4, 5/6, 7/8, 9/10, 11/12-FX RTN): 8 x pan knobs
Level (Channels 1-4, 5/6, 7/8, 9/10, 11/12-FX RTN): 8 Level knobs
Master Level: 1 x fader
Aux Master: 1 x Aux Master knob
Headphone Level: 1 x knob
Parameter: 1 x Parameter knob for FX
Tap Tempo: 1 x button
Output Type: Button for mono line out or stereo headphones
Headphone Input: 1 x button for Master or USB Return 3/4

EQ Controls 3-Band EQ (Channels 1-4)
HF: ±12 at 12 kHz
MF: ±12 at 2.5 kHz
LF: ±12 at 80 Hz
Effects Karaoke
Delay
Chorus
Reverb
USB Connector: Type-B
Sound Card: USB 4 x 4
Indicator LEDs Meters: 4 x LED (-20, 0, +6 dB, Peak)
Delay Tap Tempo: 1 x LED
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer

Soundcraft 5085985US (Sound Craft 5085985-US)
