This product has been discontinued by the manufacturer. Please contact us to find a replacement.

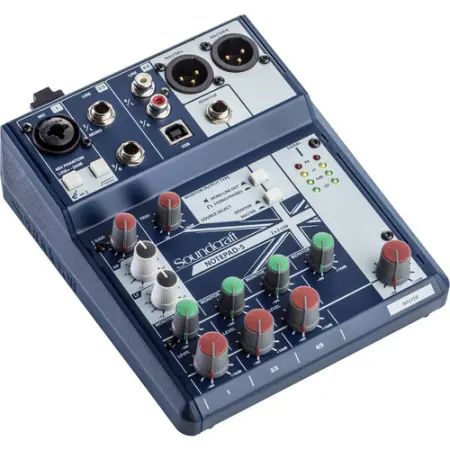

The Notepad-5 from Soundcraft is a small-format, 5-channel analog mixing console with an integrated 2x2 USB audio interface, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analog components such as a microphone preamp with a combo XLR-1/4" input, 2-band EQ, and a 100 Hz high-pass filter. Additionally, input 1 offers a Hi-Z instrument input for incorporating guitars and other high-impedance instruments.
Channels 1-3 include gain/trim controls, a monitor send, and level controls. Channels 2/3 utilize 1/4" line-level inputs, while channels 4/5 include stereo RCA inputs. Outputs include Master L/R on XLR, a 1/4" monitor send, and a dedicated 1/4" monitor output button to select between mono line output or stereo headphone output. The master section offers a master control knob and four LED meters with -20, 0, +6 dB, and peak settings. The Notepad-5 features a durable metal enclosure and ships with an external power supply.
Features:
One Combo XLR-1/4" Mic/Line Input
Two 1/4" Line Inputs and Two RCA Inputs
2-In/2-Out USB Audio Interface
Master XLR Outputs
Soundcraft Notepad Specs:
Inputs Mic/Line (Channel 1): 1 x combo XLR-1/4" / 6.35 mm
Line (Channels 2/3): 2 x 1/4" / 6.35 mm
Line (Channels 4/5): 2 x RCA
Outputs Master (L/R): 2 x XLR
Monitor: 1 x 1/4" / 6.35 mm
Controls Gain (Channel 1): 1 x Gain knob
Trim (Channels 2/3): 1 x Trim knob
Monitor Send (Channels 1, 2/3, 4/5): 3 x Monitor send knobs
Level (Channel 1, 2/3, 4/5)): 3 x Level knobs
Master Level: 1 x knob
Monitor Master: 1 x Monitor master knob
Output Type: Button for mono line out or stereo headphones
EQ Controls 2-Band EQ (Channel 1)
HF: ±12 at 12 kHz
LF: ±12 at 80 Hz
Indicator LEDs Meters: 4 x LED (-20, 0, +6 dB, Peak)
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer
