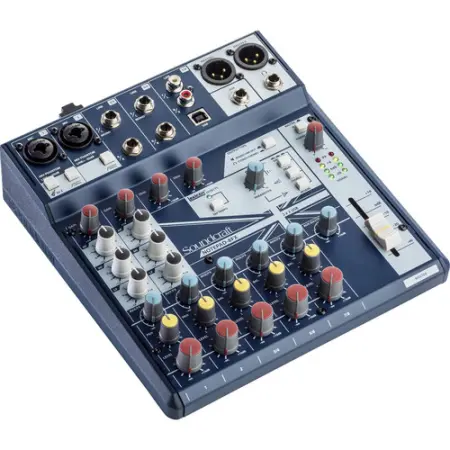

The Notepad-8FX from Soundcraft is a small-format, 8-channel analog mixing console with an integrated 2x2 USB audio interface and built-in Lexicon effects, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analog components such as two microphone preamps with combo XLR-1/4" inputs, 3-band EQ, and 100 Hz high-pass filters. Additionally, input 1 offers a Hi-Z instrument input for incorporating guitars and other high-impedance instruments.

Channels 1-6 include gain/trim controls, and all channels feature an aux send, pan knob, and level controls. Channels 3/4 and 5/6 feature 1/4" line-level inputs, while channels 7/8 include stereo RCA inputs. Outputs include Master L/R on XLR, a 1/4" aux send, and a dedicated 1/4" headphone output with selectable monitoring of the master bus or aux bus. The on-board effects include delay with tap-tempo, reverb, chorus, and karaoke. The master section offers a master fader and four LED meters with -20, 0, +6 dB, and peak settings. The Notepad-8FX features a durable metal enclosure and ships with an external power supply.

Features:
Two Combo XLR-1/4" Mic/Line Inputs
Four 1/4" Line Inputs and Two RCA Inputs
2-In/2-Out USB Audio Interface
Lexicon FX with Delay, Reverb, & Chorus

Soundcraft Notepad Specs:
Inputs Mic/Line (Channels 1-2): 2 x combo XLR-1/4" / 6.35 mm
Line (Channels 3/4): 2 x 1/4" / 6.35 mm
Line (Channels 5/6): 2 x 1/4" / 6.35 mm
Line (Channels 7/8): 2 x RCA
Outputs Master (L/R): 2 x XLR
Aux: 1 x 1/4" / 6.35 mm
Headphone: 1 x 1/4" / 6.35 mm
Controls Gain (Channels 1/2): 2 x Gain knobs
Trim (Channels 3/4 & 5/6): 2 x Trim knobs
Aux Send (Channels 1/2, 3/4, 5/6, 7/8): 5 x Aux/FX knobs
Pan (Channels 1/2, 3/4, 5/6, 7/8): 8 x pan knobs
Level (Channels 1/2, 3/4, 5/6, 7/8): 8 x Level knobs
Master Level: 1 x Fader
Aux Master: 1 x Aux Master knob
Headphone Level: 1 x knob
Parameter: 1 x Parameter knob for FX
Tap Tempo: 1 x Button
Output Type: Button for mono line out or stereo headphones
Headphone Input: 1 x button for Master or Aux

EQ Controls 3-Band EQ (Channels 1/2)
HF: ±12 at 12 kHz
MF: ±12 at 2.5 kHz
LF: ±12 at 80 Hz
Effects Karaoke
Delay
Chorus
Reverb
USB Connector: Type-B
Sound Card: USB 2 x 2
Indicator LEDs Meters: 4 x LED (-20, 0, +6 dB, Peak)
Delay Tap Tempo: 1 x LED
Dimensions Not specified by manufacturer
Weight Not specified by manufacturer

Soundcraft Notepad8FX (Sound Craft Notepad-8FX)
