Sound Craft Si IMPACT CONSOLE

$2,659.00 new
Warranty
Description Q&A: 0 Reviews: 0 Financing
or $242/mo $0 Shipping, $0 Tax



Available - Ships in 1-2 days Low Price Guarantee



or $ 242/mo $0 Shipping, $0 Tax


User Reviews

Read all reviews
Product Description

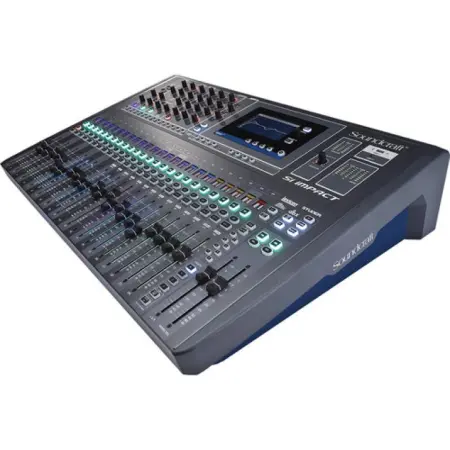

The Soundcraft Si Impact is a 40-input digital mixing console and 32-in/32-out USB audio interface that supports remote iPad mixing using a proprietary app. The console is designed to be as simple as an analog mixer, but offers workflow enhancements such as the FaderGlow system, which illuminates each fader track in different colors to provide at-a-glance status information on precisely what the fader is controlling.

Featuring studio-grade reverbs, delays, and modulations from Lexicon, dbx dynamics, and BSS graphic equalizers, the Si Impact comes fully equipped to mix everything from rock bands to stage plays. Also a 32-in/32-out USB audio interface, the Si Impact mixer delivers professional digital recording directly to your DAW, and comes with a free download of Ableton Live Lite 9.

Features:
32 mic inputs
8 XLR/1/4" combi-jacks for line inputs and instruments
40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
31 output busses (all with full DSP processing and GEQ)
4-band fully parametric EQ on each channel and bus
8 VCAs + 8 Mute groups
26 motorized faders (24 input + LR/Mono)
4 fully customizable fader layers
Built-in stagebox connectivity
5" touchscreen display
Multi-color LCD channel displays on each input fader
4 studio-grade Lexicon FX engines and dedicated FX busses
BSS graphic equalizers on every bus
20 sub-group / aux busses
4 mono/stereo matrix busses
32x32 USB audio interface for multi-track recording and playback

Soundcraft 5056170 Specs:
Mixer
Number of Analog Input Channels 40
Signal Processing
Gain/Trim Range Mic:
-5 dB to 58 dB (in 1 dB Steps)
Line:
-10 dB to +16 dB
Gate Parameters Threshold: -60 to -6 dBFS
Depth: -60 to -3 dB
Attack: .1 ms to 200 ms
Release: 20 ms to 500 ms
Compressor Parameters Threshold: -52 to -6 dBFS
Ratio: 1:1 to 20:1
Attack: .1  to 200 ms
Release: 5  to 900 ms
Makeup Gain: 0 to 24 dB
Sidechain Filters Gate:
High-Pass: 22 Hz to 2.5 kHz
Low-Pass: 160 Hz to 20 kHz
EQ Parameters HF Shelf:
±15 dB at 800 Hz to 20 kHz
MF Notch/Peak:
±15 dB at 22 Hz to 20 kHz, 6 to 0.3 Q
LF Shelf:
±15 dB at 20 Hz to 500 Hz
Graphic EQ 28-Band 1/3 Octave,  31 Hz to 16 kHz
Filters High-Pass: 40 Hz to 1 kHz
Audio Delay Adjustable Up to 500 ms
Digital Audio
Sample Rates AD/DA Conversion:
Up to 200 kHz
Bit Depth AD/DA Conversion:
24-Bit
DSP 40-Bit Floating Point
Jitter ±7 ns
Word Clock Input 48 kHz ±7 Hz
Latency
Performance
dBFS Reference Level +21.5 dBu = 0 dBFS
Frequency Response Mic/Line Input:
20 Hz to 20 kHz ±1.5 dB
Max Input Level Mic Input:
+22 dBu
Line Input:
+22 dBu
Output Level Mix Output:
+21.5 dBu (Max)
Headphone Output Power 300 mW into 150 Ohms
I/O Impedance Mic Input:
3 kilohms
Line Input:
10 kilohms
Output:
150 ohms (Balanced)
75 ohms (Unbalanced)
Word Clock Output:
50 ohms
Word Clock Input:
47 ohms
AES3 Output:
110 ohms
Crosstalk Adjacent Channels:
Adjacent Inputs:
-100 dB at 1 kHz
-85 dB at 10 kHz
CMRR -80 dBu at Max Gain
EIN -126 dBu at Max Gain (150-ohm Input)
Noise Floor
THD
Power
AC Input Power 88 to 264 VAC, 50 / 60 Hz
Power Consumption 130 W (Maximum)
Physical
Operating Temperature 41 to 113°F / 5 to 45°C
Operating Humidity 0 to 90%
Storage Temperature -4 to 140°F / -20 to 60°C
Dimensions 6.3 x 29.5 x 19.7" / 160 x 750 x 500 mm
Weight 44.1 lb / 20 kg

Soundcraft Si-IMPACT CONSOLE   ( Sound Craft 5056170 )
