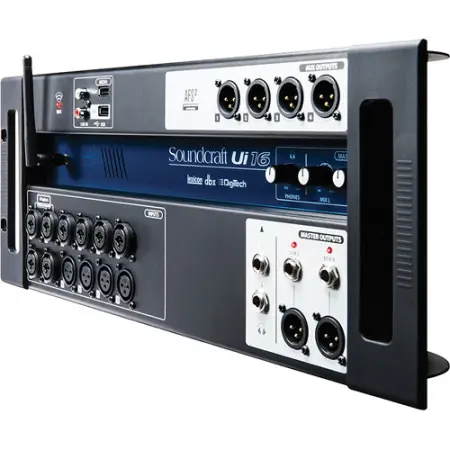

The Ui16 from Soundcraft is a 16-input remote-controlled, fully recallable digital mixing system, housed in a compact, road-rugged stagebox format. With built-in Wi-Fi, cross-platform compatibility, and the ability to be controlled by any connected device via standard web browser, the Ui16 offers a full-featured, flexible remote mixing solution for a wide variety of live sound reinforcement applications.

The Ui16 features cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the mixer features signal processing from dbx, DigiTech and Lexicon, including dbx AFS2 feedback suppression, DigiTech amp modeling, and more. It has fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on all input channels. The mixer also features 31-band graphic EQ, noise gate, and compressor on all outputs, plus real-time frequency analyzer (RTA) on all inputs and outputs.

In the I/O department, the Ui16 boasts four XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi-Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with 4 balanced XLR Aux outputs, two 1/4" headphone outputs with level control, plus balanced stereo XLR and 1/4" main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats, and 2-channel recording to a USB storage device is also possible. The Ui16 also has an HDMI display connection output.

Features:
Tablet/PC/smartphone controlled digital mixer
Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
Independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet
Floor-ready, rugged chassis for live applications
Integrated Wi-Fi
Use up to 10 control devices (tablets, phones, PCs) simultaneously
Signal processing from dbx, DigiTech, and Lexicon
Fully recallable and remote-controlled mic preamps
4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels
31-band graphic EQ, noise gate and compressor on all outputs
Real-time frequency analyzer (RTA) on inputs and outputs
3 dedicated Lexicon FX effects processors: reverb, delay and chorus
Subgroups, Mute Groups, View Groups, and more mixer controls
Show/Snapshot recall with channel safes and security lockout
Includes Ableton Live Lite
2-channel USB audio playback and recording

Soundcraft UI 16 Specs:
Mixer
Number of Analog Input Channels 16
Connectivity
Analog Inputs 1 x 2RCA Line Input
6 x Combo XLR-1/4" Mic/Line Input
2 x Combo XLR-1/4" Mic/Line/Hi-Z Input
4 x XLR Mic Input
Analog Outputs 2 x 1/4" TRS Headphone Output
2 x XLR Main Output
2 x 1/4" Main Output
4 x XLR Balanced Aux Send
Digital I/O 1 x RJ45 (Control)
USB 1 x USB Type-A (Audio Playback, Recording)
Wireless Connectivity Wi-Fi
External Display Connection HDMI
Physical
Dimensions 4.3 x 7 x 19" / 110 x 177 x 483 mm
Weight 7.9 lb / 3.6 kg

Soundcraft UI16 Digital Mixer (Sound Craft 5056219)
