8ohms Stereo: 2x1000watts
4ohms Stereo: 2x1700watts
2ohms Stereo: 2x2890watts
16ohm Bridged: 2000watts
8ohm Bridged: 3400watts
4ohm Bridged: 5780watts


Energy saving with over 95% efficiency
Power factor correction (PFC)
Universal 90-250V power supply
2 and 4 channel models
Reliable efficient operation down to 2ohm loads
Variable speed fan cooling
Internally modular design for quick maintenance
Stereo/parallel/bridge modes
Multiple gain modes
Output limiter
Balanced XLR inputs
32A mains power input socket
Thermal, overload, DC protection
Thermal, fault and limiter indicators

Slope (1kHz, Bypass LPF): 50V/us
Input Sensitivity 1kHz: Option: 41dB, 38dB, 35dB, 32dB
THD+N (10% rated output power): 0.01%
IMD-SMPTE (10% rated output power): 0.01%
DIM30 (10% rated output power): 0.01%
Crosstalk rejection (less than rated power, 20Hz – 1kHz): >80Db
Frequency Response (10% rated output power, 8ohm, 20Hz – 20kHz): 0.2dB
Input Impedance: 20k ohm (bal), 10k ohm (unbal)
Damping Factor (8ohm, 20Hz – 200Hz): 5000
S/N ratio (A weighted, 20Hz-20kHz): >105-112dB
Power supply: 90-260VAC, 50/60Hz
Protection: low voltage/overoad/thermal/DC output protection
Dimensions (WxHxD) 483mm x 44mm x 462mm
Net Weight: 10-12kg

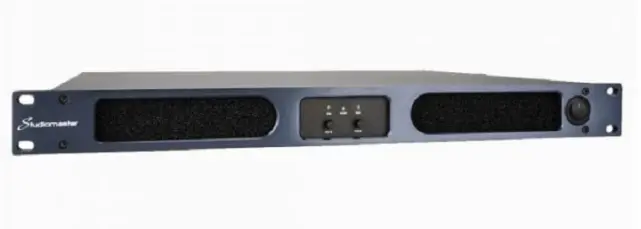

Studiomaster QX2000 (Studio Master QX2 2000)
