Tascam CD-200iL

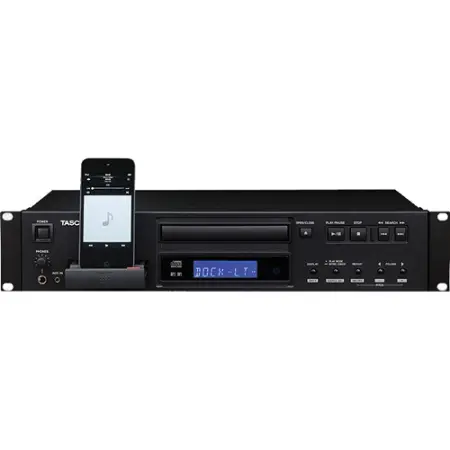

The Tascam CD-200iL Professional CD Player with 30-Pin and Lightning iPod Dock is a 2RU rackmountable media player designed for home and installed listening applications. The unit features a TEAC constructed CD-Drive with a 10 second shockproof buffer to prevent audio dropouts if a CD skips. The drive can handle a variety of file formats such as WAV, MP3, and MP2 with support for CD text and ID3 tags. Alternatively you can connect a 30-pin or Lightning connector iPod or iPhone to the unit's retractable audio interface dock for improved digital to analog conversion over the mobile device's internal soundcard. The unit also features an analog auxiliary mini stereo jack for connecting to the 1/8" input of an MP3 player or other source.

The front panel features the transport controls and an LCD display that can switch between showing information such as track elapsed time and the artist and album names. A ±14% pitch adjustment control, a repeat button, buttons for moving through the folders on a data CD, and playmode buttons that enable continuous, shuffle, and program playback modes are included on the front panel. The unit also comes with a 10-key wireless remote control.

Features:

For outputs the player features a 1/4" headphone output, analog RCA outputs, as well as coaxial and optical digital outputs for connecting to a receiver, mixer, PA system, and more.

Retractable iPod/iPhone Dock
Provides connection and improved digital to analog conversion to either a 30-pin or Lightning connector iPod or iPhone

10 Second Skip Proof CD Drive Buffer
Loads 10 seconds audio data into internal memory

Auxiliary Input
Enables connection to a mobile device such as a smartphone or MP3 player via 1/8" stereo mini jack

Audio Formats
Supports WAV, MP3, MP2

Pitch Control
Enables ±14% pitch control

Intro Function
Plays the first 10 seconds of each song on a CD

10-Key Wireless Remote
Controls primary transport functions of CD player

Folder Playback
Enables playback of songs in specific folders when using data CDs

Three Playback Modes
Enables continuous, shuffle, and program playback modes

Specifications:


Playback Media Formats
CD, CD-ROM, CD-R, CD-RW (12 cm / 8 cm)
File Formats CD-DA: stereo 16-bit at 44.1 kHz resolution
WAV: stereo 8/16-bit at 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz
MP2: stereo 32 to 384 kbps at 32, 44.1, 48 kHz
MP3: stereo 32 to 320 kbps VBR at 32, 44.1, 48 kHz

Analog Audio Inputs
Connector
1/8" (3.5mm) stereo mini jack

Input Impedance
22 kΩ

Nominal Input Level
-20 dBV

Maximum Input Level
-4 dBV

Analog Audio Outputs
Connector
RCA pin-jack

Output Impedance
200 Ω

Nominal Output Level
-10 dBV (0.32 Vms)

Maximum Output Level
+6 dBV (2.0 Vms)

Digital Audio

Coaxial Interface
Connector
RCA pin-jack

Output Impedance
75 Ω
Format IEC60958-3 (S/PDIF)

Optical I/O
Connector Type
TOS (JEITA RC-5720C)

Format
IEC60958-3 (S/PDIF)

Headphones
Connector
6.3mm (1/4") stereo phone jack

Maximum Output Level
20 mW + 20 mW or more

THD
0.1% or less into 32 Ω load)

General

Power Requirements
120 VAC at 60 Hz (USA/Canada)
230 VAC at 50 Hz (UK/Europe)
240 VAC at 50 Hz (Australia)

Power Consumption
15 W
Memory
Backup: Elapse time / Title display setting (CD), Playback mode (CD), Program (when loaded), Current folder (when CD loaded), Current source, Repeat playback function setting (ON/OFF), Pitch control (ON/OFF, CD), Pitch control value (CD)

Operating Temperature
41 to 95°F (5 to 35 °C)

Installation
Inclination: 5° or less

Dimensions (W x H x D)
18.90 x 3.72 x 11.70" (481.0 x 94.5 x 298.0 mm)

Weight 11.5 lb (5.2 kg)
